10kg Payload 1450mm Reaching Distance Painting Robot

Flexible and high speed 10kg payload painting robot. It's with compact and light structure design....
  • item no.:

    SYR010-1450
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai port or designated prot
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Functional Features


  • The well-knit design makes the 6 dof robotic arm body more slender than other same level product, so it is more flexible even in a small space, also keep a very low rate of collision with surrounding devices.
  • Maximum reach 1450mm
  • Automation and robotics lighter structure design than other same level product, so it is easy to install inside a system or to mount upside -down
  • High-rigidity arm and top-level servo control technology guarantee the smoothness and stability while the movement.
  • Rated payload 10kg, easily applied in multiple application
  • Industrial robotic arm built-in cable, no more catheter and cable twisting on the arm. Leak-proof structure, which can be applied in dust and oil-mist environment.



Technical Parameters




Robot model SYR010-1450
Function Material handling
Total axes 6
Payload 10kg
Position repeat accuracy ±0.08mm
Max speed axis 1 170°/sec
axis 2 110°/sec
axis 3 240°/sec
axis 4 300°/sec
axis 5 300°/sec
axis 6 375°/sec
Max motion range axis 1 ±170°
axis 2 +70° / -150°
axis 3 +150° / -90°
axis 4 ±170°
axis 5 ±120°
axis 6 ±360°
Installation forms Floor mounted
Robot weight 190kg
Power consumption 4kw
Maximum reach 1450mm
Installation environment Temperature 0~+45℃
Vibration Under 4.9M/S²
Protection Class IP44

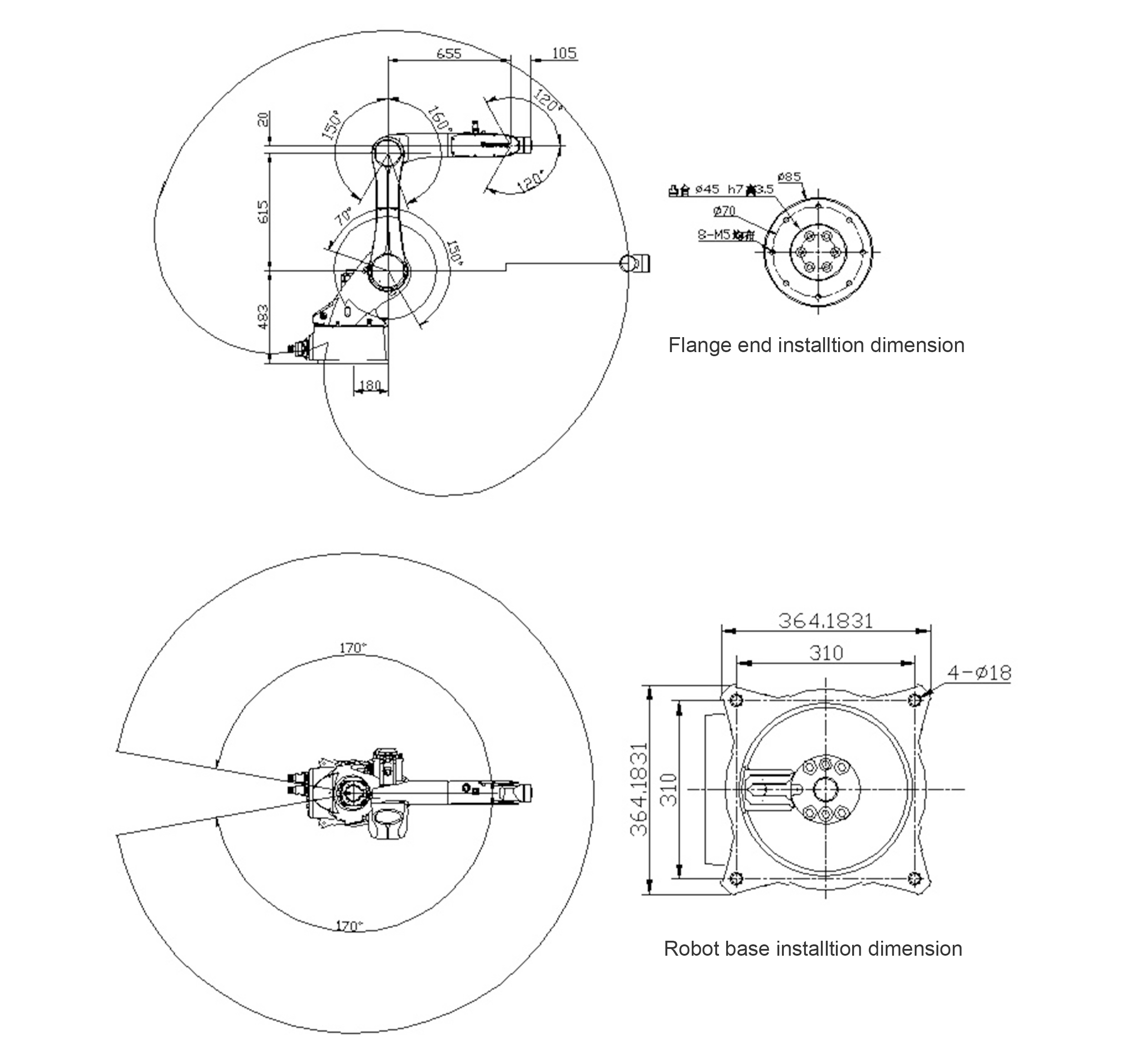

Motion Range and installation Diagram


SYR010-1450 palletizing robot drawing
