Functional Features

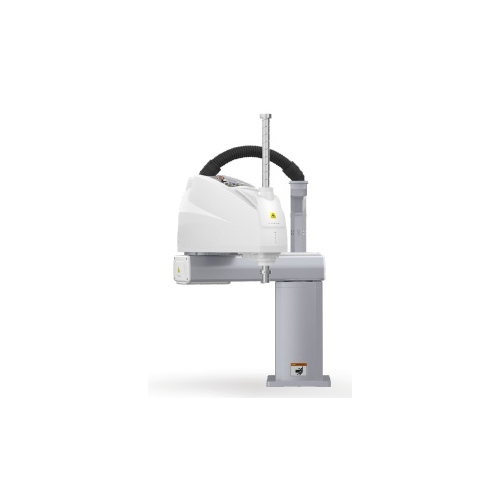

Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise
Robotic automation highly rigid arm design realizes high load and high speed in one package
Available in 600 to 1000mm arm span; 1kg to 20kg payload
Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms
Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields
Technical Parameters
Model | EVS20-800H | |
Function | material handling, 10C products | |
Total axes | 4 | |
Maximum reach | 800mm | |
Payload | rated load | 10kg |
maximum load | 20kg | |
Permissible inertial torque of rotating axis | rated torque | 0.05kg·m2 |
maximum torque | 0.45kg·m2 | |
Repeated positioning accuracy | horizontal coordinate | ±0.025mm |
z coordinate | ±0.01mm | |
rotation angle | ±0.01° | |
Max speed | 1st axis | 9940mm/s |
2nd axis | 9940mm/s | |
3rd axis (elevating axis) | 2020mm/s | |
4th axis (rotation axis) | 1400°/sec | |
Max operating area | 1st axis | ±131° |
2nd axis | ±150° | |
3rd axis (elevating axis) | 420mm | |
4th axis (rotation axis) | ±360° | |
Installation form | Floor mounted | |
Robot weight(without cable) | 49kg | |
Power consumption | 2.55kw | |
Installation environment | Temperature | 0~+45℃ |
Humidity | 20~80%RH (no condensation) | |
Vibration | Under 4.9M/S132 | |
Application | Capable of working with vision system. And can be applicated in handling,assembly, sorting,material loading and unloading etc |
Dimension Drawing
Motion Range Drawing
