/6kg Payload 500mm 4 Axis High Speed High Rigidity SCARA Robot EVS6-500U

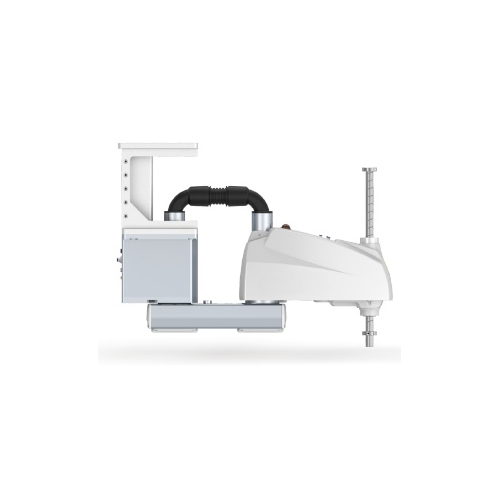

6kg Payload 500mm 4 Axis High Speed High Rigidity SCARA Robot EVS6-500U

Functional FeaturesScara robotwith compact and flexible structure, fast running speed, high transmission accuracy and low noiseRobotic automationhighly rigid arm design realizes high load and high speed in one packageAvailable in 600 to 1000mm arm span; 1kg to 20kg payloadAdapt t...
  • item no.:

    EVS6-500U
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Functional Features


  • Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise

  • Robotic automation highly rigid arm design realizes high load and high speed in one package

  • Available in 600 to 1000mm arm span; 1kg to 20kg payload

  • Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms

  • Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields



Technical Parameters



ModelEVS6-500U
Functionmaterial   handling, 13C products
Total axes4
Maximum reach500mm
Payloadrated   load2kg
maximum load6kg
Permissible inertial torque of   rotating axisrated   torque0.01kg·m2
maximum torque0.12kg·m2
Repeated positioning accuracyhorizontal   coordinate±0.02mm
z coordinate±0.01mm
rotation angle±0.01°
Max speed1st   axis6150mm/s
2nd axis6150mm/s
3rd axis (elevating axis)1100mm/s
4th axis (rotation axis)2000°/sec
Max operating area1st   axis±117.2°
2nd axis±140°
3rd axis (elevating axis)200mm
4th axis (rotation axis)±360°
Installation formupsied-down   mounted
Robot weight(without cable)19kg
Power consumption1.1kw
Installation environmentTemperature0~+45
Humidity20~80%RH   (no condensation)
VibrationUnder   4.9M/S132
ApplicationCapable of working with vision system. And   can be applicated in handlingassembly, sorting,material loading and unloading etc



Dimension Drawing







Motion Range Drawing
