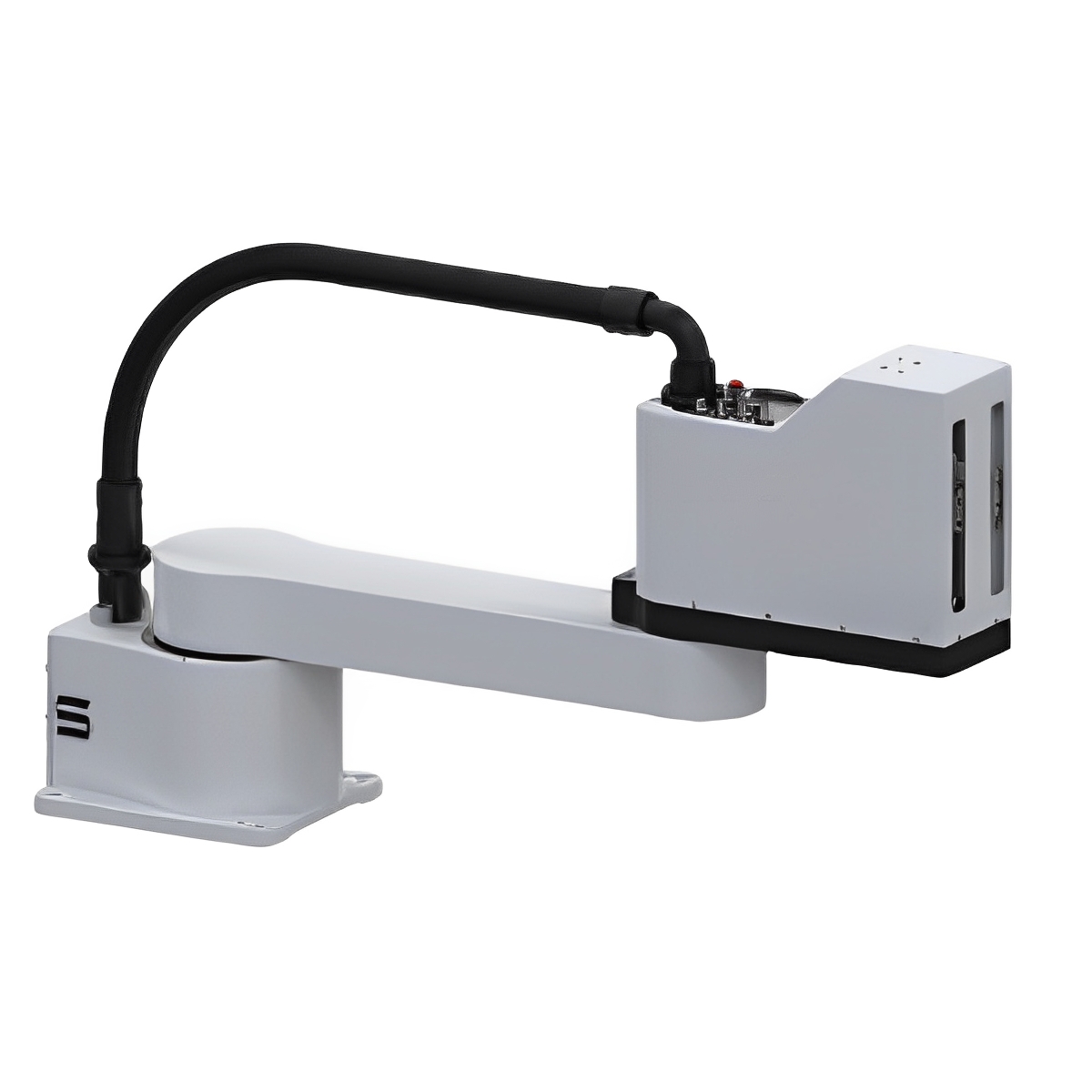

The EVS010 – 800PTRS is an outstanding 3-axis robotic marvel. Its most prominent feature is the maximum reach of 800mm, which significantly expands its working radius compared to similar models, allowing it to access a broader range of workspaces and handle tasks more flexibly.
Payload-wise, it showcases great strength with a rated load of 5kg and a maximum load of 10KG, making it well-suited for jobs that demand the movement of moderately heavy items.
| Model | EVS010-800PTRS | |||
| Axis | 3 | |||
| Maximum reach | 800mm | |||
| Payload | Rated Load | 5kg | ||
| Maximum Load | 10KG | |||
| Permissible Inertial | Rated Torque | |||
| Maximum Torque | ||||
| Position Repeat Accuracy | 1st Axis+2nd Axis | ±0.015mm | ||
| Elevating Axis | ±0.025mm | |||
| Rotation Axis | ||||
| Max Speed | lst Axis | 375 °/sec | ||
| 2nd Axis | 600 °/sec | |||
| Elevating Axis | 1000mm/sec | |||
| Rotation Axis | ||||
| Max Operating Area | 1st Axis | ±130 ° | ||
| 2nd Axis | ±130 ° | |||
| Elevating Axis | 120mm | |||
| Rotation Axis | ||||
| Installation Parameters | Floor | |||
| Robot Weight | 38Kg | |||
| Power Consumption | 1.35kw | |||
| Installation Environment |
Temperature | 0~+45℃ | ||
| Humidity | 20~80%RH(No Condensation) | |||
| Vibration | 4.9M/S² or less | |||
