6kg Payload 600mm 4 Axis Universal SCARA Robot

EVS SCARA robot is the perfect choice for your manufacturing process that need fast running speed and high repeatability …

Item No.: EVS6-600
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days


Functional Features

  • Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise
  • Robotic automation highly rigid arm design realizes high load and high speed in one package
  • Available in 600 to 1000mm arm span; 1kg to 20kg payload
  • Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms
  • Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields

Technical Parameters

Model EVS6-600
Function material   handling, 3C products
Total axes 4
Maximum reach 600mm
Payload rated   load 3kg
maximum load 6kg
Permissible inertial torque of   rotating axis rated   torque 0.01kg·m2
maximum torque 0.12kg·m2
Repeated positioning accuracy horizontal   coordinate ±0.02mm
z coordinate ±0.01mm
rotation angle ±0.01°
Max speed 1st   axis 450°/sec
2nd axis 720°/sec
3rd axis (elevating axis) 1000mm/sec
4th axis (rotation axis) 2000°/sec
Max operating area 1st   axis ±132°
2nd axis ±142°
3rd axis (elevating axis) 220mm
4th axis (rotation axis) ±360°
Installation form Floor   mounted
Robot weight(without cable) 17Kg
Power consumption 0.8kw
Installation environment Temperature 0~+45℃
Humidity 20~80%RH   (no condensation)
Vibration Under   4.9M/S²
Application Capable of working with vision system. And   can be applicated in handling,assembly, sorting,material loading and unloading etc

Dimension Drawing

4 Axis Universal SCARA Robot Dimension Drawing

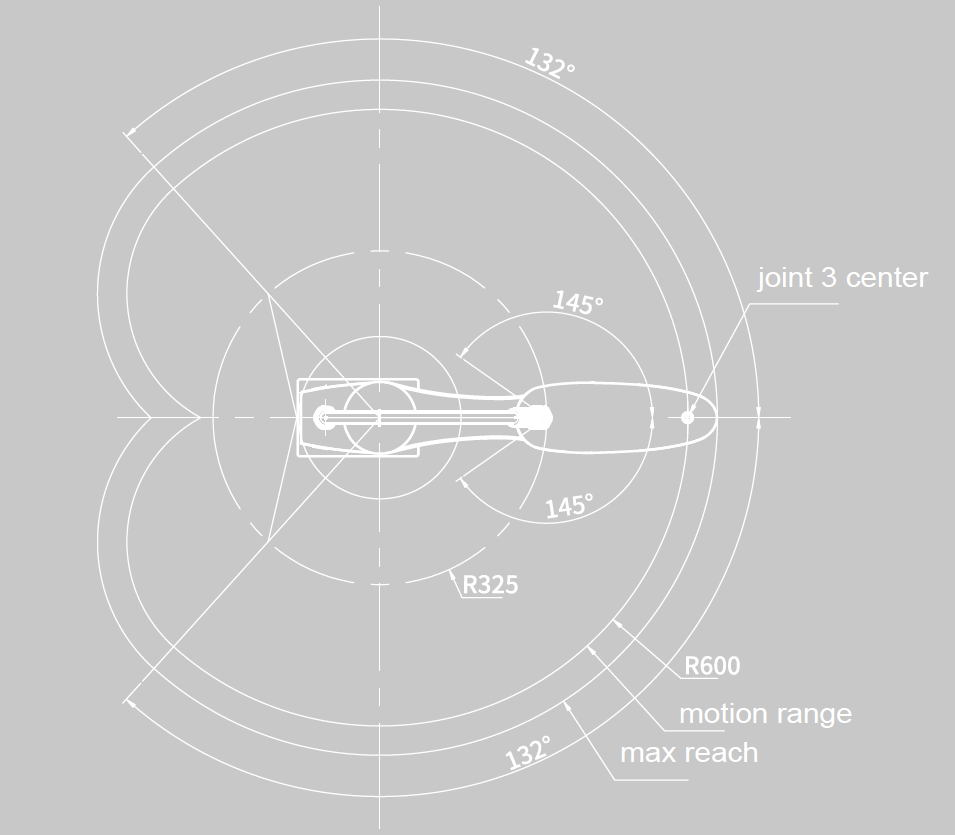

Motion Range Drawing

4 Axis Universal SCARA Robot Motion Range Drawing
