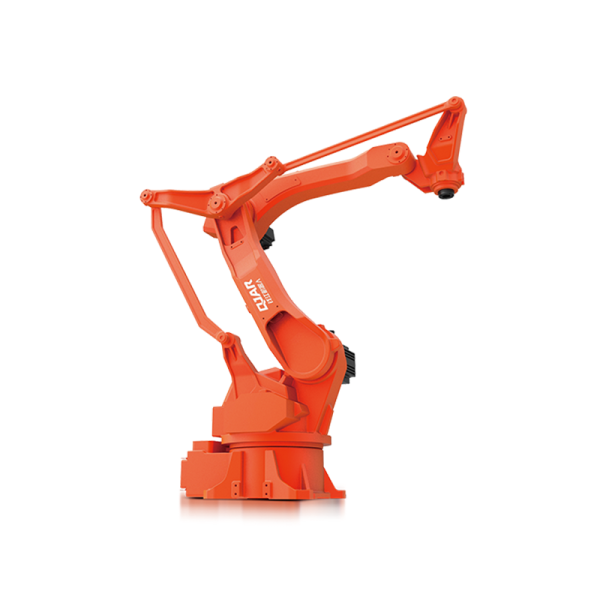

QJAR 15kg Payload 1510mm Arm Span Pick And Place Robot 1

QJAR 15kg Payload 1510mm Arm Span Pick And Place Robot 2

QJAR 15kg Payload 1510mm Arm Span Pick And Place Robot

QJAR 15kg super cost-effective 4 axis pick and place robot. It’s widely applied in punching, palletizing, packaging, etc….

Item No.: QJRB15-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days

PRODUCT DETAILS

Brief Introduction

High-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software.
Widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, picking, packaging, handling, feeding and unloading.

Technical Details

Model		QJRB15-1
Axis Number		4
Payload		15kg
Repeat Positioning		±0.05mm
Max Armspan		1510mm
Motion Range	J1	±168º
	J2	﹢105º,﹣50º
	J3	﹢105º,﹣25º
	J4	±360º
	J5	_
	J6	_
Max Speed	J1	195º/s
	J2	195º/s
	J3	229º/s
	J4	544º/s
	J5	_
	J6	_
Allowable Torque	J4	29.4N.m
	J5	_
	J6	_
Inertia Moment	J4	0.6kg.m²
	J5	_
	J6	_
Robot Body Weight		160kg
Power Capacity		2.7kVA
Cabinet Size		580600960mm
Cabinet Weight		100kg
Source		One-phase
Installing Form		Ground

Robot Overall Dimension and Motion Range Drawing

Robot Base Mounting Dimension Drawing

Robot End Installation Dimension Drawing
