Brief Introduction
- High-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software.
- Widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, picking, packaging, handling, feeding and unloading.
Technical Details

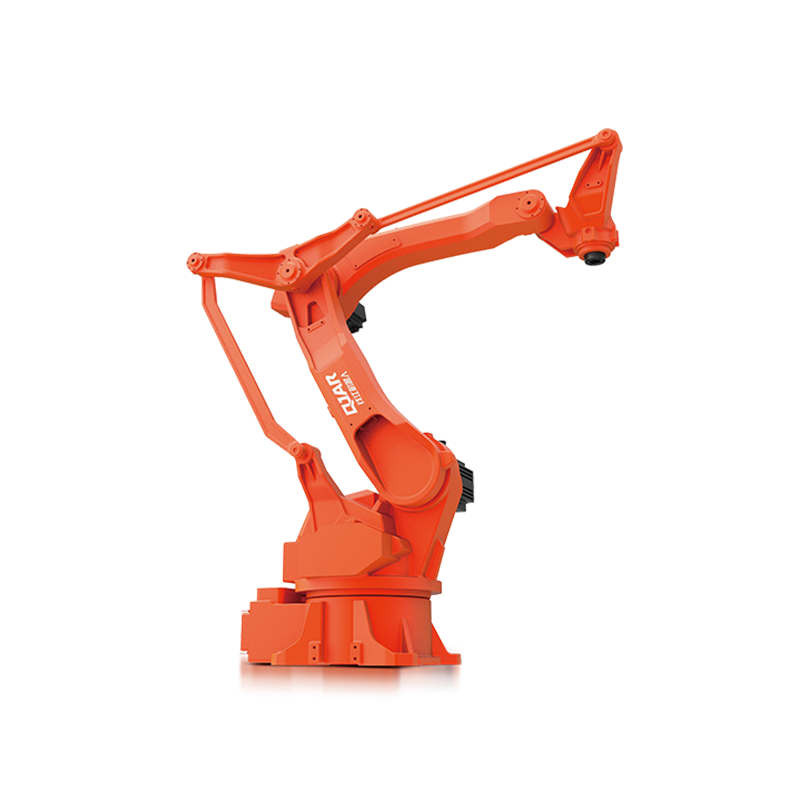

Model | QJRB15-1 | |
Axis Number | 4 | |
Payload | 15kg | |
Repeat Positioning | ±0.05mm | |
Max Armspan | 1510mm | |
Motion Range | J1 | ±168º |
J2 | ﹢105º,﹣50º | |
J3 | ﹢105º,﹣25º | |
J4 | ±360º | |
J5 | _ | |
J6 | _ | |
Max Speed | J1 | 195º/s |
J2 | 195º/s | |
J3 | 229º/s | |
J4 | 544º/s | |
J5 | _ | |
J6 | _ | |
Allowable Torque | J4 | 29.4N.m |
J5 | _ | |
J6 | _ | |
Inertia Moment | J4 | 0.6kg.m² |
J5 | _ | |
J6 | _ | |
Robot Body Weight | 160kg | |
Power Capacity | 2.7kVA | |

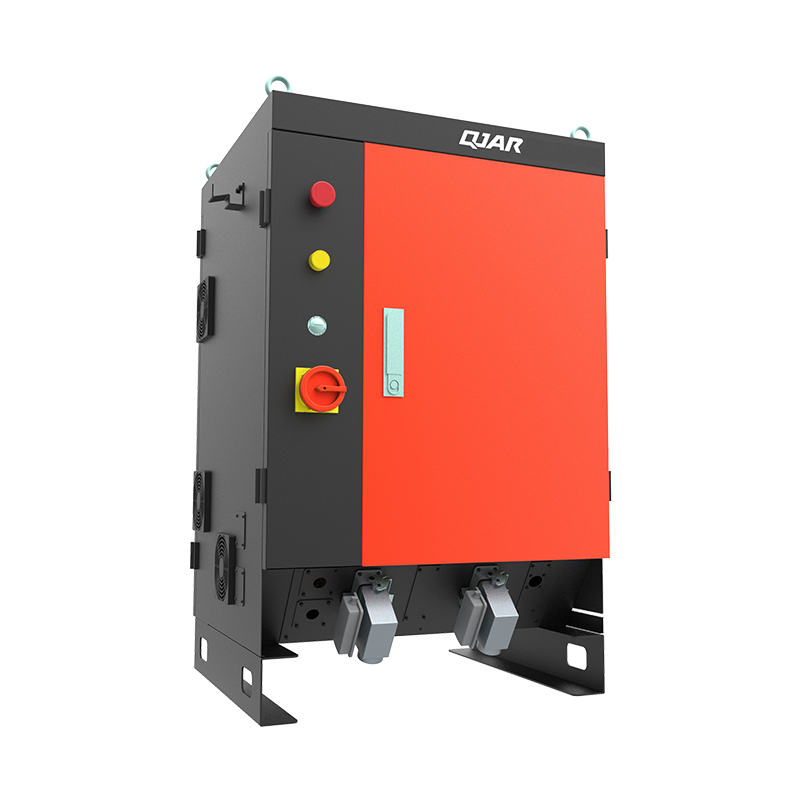

Cabinet Size | 580*600*960mm | |
Cabinet Weight | 100kg | |
Source | One-phase | |
Installing Form | Ground |
Robot Overall Dimension and Motion Range Drawing

Robot Base Mounting Dimension Drawing

Robot End Installation Dimension Drawing
