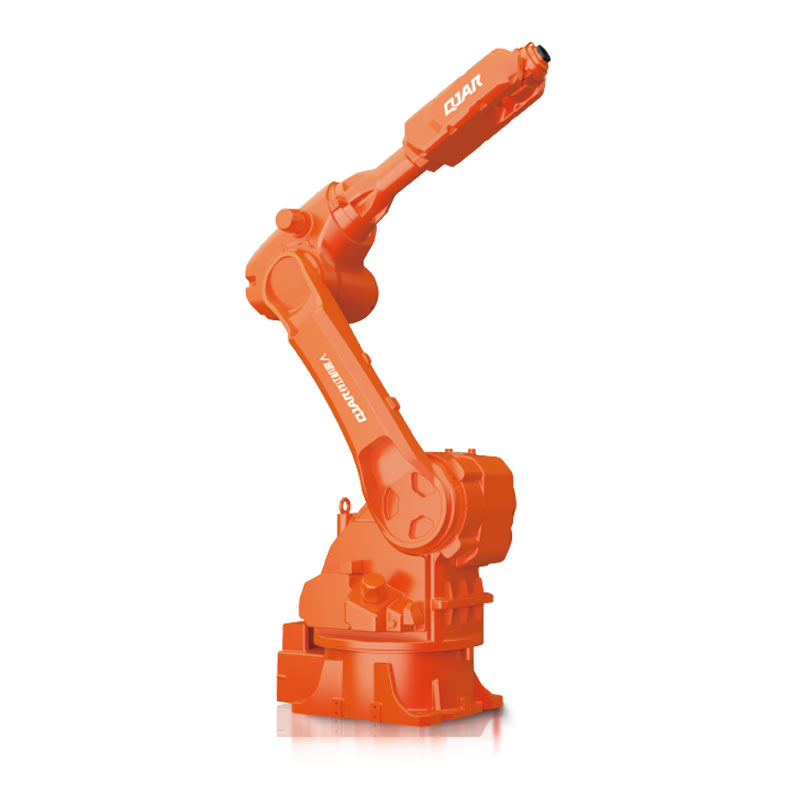

20kg Payload 1671mm Reaching Distance China pick and place Robotic Arm

QJRB20-1 is with a simple and compact mechanical strucutre. The fisrt national certified spraying robot with explosion-proof function in China....
  • item no.:

    QJRB20-1
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction


  • QJRB20-1 is the first national certified spraying robot with an explosion-proof feature on the market.
  • Through the optimization of the structure of the vertical multi-joint robot, it has a simple and compact mechanical structure.
  • High running speed, high repeat positioning accuracy, suitable for palletizing, handling, loading and unloading, laser cutting, spraying, polishing, and other wide range of applications.

Technical Details




Model QJRB20-1
Axis Number 6
Payload 20kg
Repeat Positioning ±0.05mm
Max Armspan 1671mm
Motion Range J1 ±172º
J2 ﹢158º,﹣110º
J3 ﹢83º,﹣92º
J4 ±170º
J5 ±125º
J6 ±360º
Max Speed  J1 150º/s
J2 150º/s
J3 150º/s
J4 281º/s
J5 292º/s
J6 372º/s
Allowable Torque J4 38.81N.m
J5 38.81N.m
J6 29.4N.m
Inertia Moment  J4 3kg.m²
J5 3kg.m²
J6 2.2kg.m²
Robot Body Weight 270kg
Power Capacity 3.6kVA

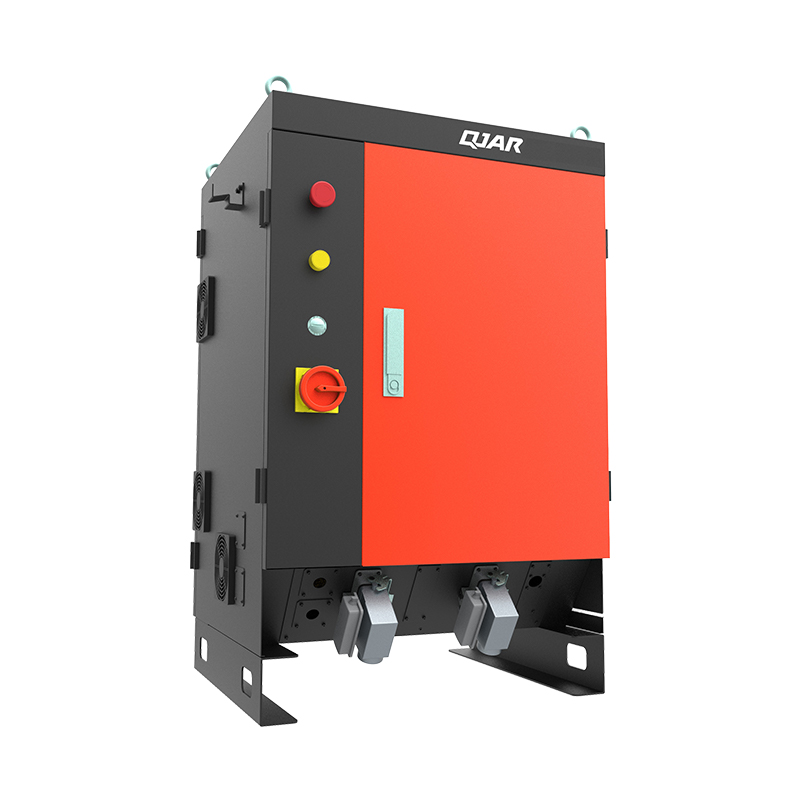

Cabinet Size 580*600*960mm
650*750*1150mm
Cabinet Weight 130kg/120kg
Source Three-phase four-wire
Installing Form Ground, Ceiling




Robot Overall Dimension and Motion Range Drawing



QJRB20-1 robotic arm dimension and motion range

Robot Base Mounting Dimension Drawing



QJRB20-1 robotic arm base mounting dimension drawing

Robot End Installation Dimension Drawing



QJRB20-1 robotic arm robot end installation dimension drawing
