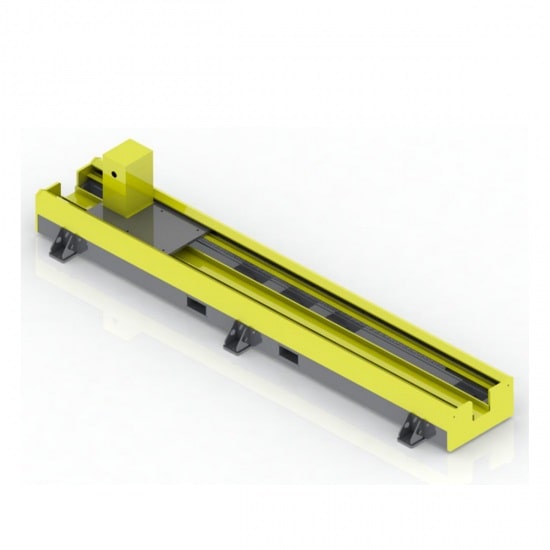

Robot Walking Rail

EVS robot walking rail is assembled with standardized modules. It is mainly composed of mechanical parts, power and guidance parts....
  • item no.:

    EVS-SW-X-Z-L/EVS-SW-X-Z-M/EVS-SW-X-Z-CZ
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Technical Parameter






Product   nameSingle-axis servo walking rail(lightweight)
Main ApplicationWelding, light material loading and unloading
ModelEVS-SW-X-Z-L
Number   of control axesOne   axis
Control   modeElectric   control based on precision AC servomotor
Installation   formGround   Installation
Drive   modeRack   and pinion drive
Rack   and pinion formPrecision   helical gear
GuidewayLinear guide rail and slide table
ReducerPrecision planetary gear
reduction ratioi=20
Repeat positioning accuracy±0.08mm
Walking   speed0-40000mm/min
Effective travel800mm
Effective mounting size of slide table450mm×500mm(length*width)
Maximum   loadTotal   load1000kg(Handling robot arm   end load50kg)
Dimensions900mm(length)*800mm(shield   cover height)
Drag chainCentral/external (drag chain inner cavity 45×75+45×75)
WeightLength×150kg/m+150kg (weight of slide assembly)


Product nameSingle-axis servo walking      rail(middleweight)
Main ApplicationWelding, light material loading and unloading
ModelEVS-SW-X-Z-M
Number of control axesOne axis
Control modeElectric control based on precision AC servomotor
Installation formGround Installation
Drive modeRack and pinion drive
Rack and pinion formPrecision helical gear
GuidewayLinear guide rail and slide table
ReducerPrecision planetary gear
reduction ratioi=20
Repeat positioning accuracy±0.10mm
Walking speed0-40000mm/min
Effective travel1400mm
Effective mounting size of slide table900mm×750mm(length*width)
Maximum loadTotal   load≤3000kg(Handling robot arm   end load≤300kg)
Dimensions1270mm(length)*900mm(shield cover height)
Drag chainCentral/external (drag chain inner cavity 45×75+45×75)
WeightLength×300kg/m+420kg (weight of slide assembly)


Product nameSingle-axis servo walking rail(heavyweight)
Main ApplicationWelding, light material loading and unloading,
    Multi-axis walking base
ModelEVS-SW-X-Z-CZ
Number of control axesOne axis
Control modeElectric control based on precision AC servomotor
Installation formGround Installation
Drive modeRack and pinion drive
Rack and pinion formPrecision helical gear
GuidewayLinear guide rail and slide table
ReducerPrecision planetary gear
reduction ratioi=40
Repeat positioning accuracy±0.15mm
Walking speed0-20000mm/min
Effective travel1500mm
Effective mounting size of slide table1000mm×1100mm(length*width)
Maximum loadTotal   load≤10000kg(Handling robot   arm end load≤1000kg)
Dimensions1700mm(length)*1100mm(shield cover height)
Drag chainCentral/external (drag chain inner cavity 45×125+45×125)
WeightLength×450kg/m+800kg (weight of slide assembly)






Brief Introduction of Structure


  1.             The walking guide rail of the robot is semi-enclosed. It is assembled with standardized modules. It is mainly composed of mechanical parts, power and guidance parts.

  2.             The mechanical part is joined by standardized modules and welded by high-quality profiled steel and steel plate. After professional heat treatment, mechanical processing and post-treatment, the stability and durability of its use can be ensured. The surface is sprayed with rust-proof and exterior paint, and the appearance is beautiful.

  3.             The power part adopts the precision reducer with servo motor as its power mechanism and carries out power transmission through the well-known brand gear and rack. The high-precision linear guide rail and its supporting sliding seat as the guiding mechanism can ensure the stability and high accuracy of the sliding platform.

  4.             With automatic refueling device, the slider can be lubricated regularly to improve its service life.

  5.             The modular design of the subsection is adapted to facilitate the transportation and assembly of the equipment and the upgrade of the later stage.

  6.             The semi-enclosed structure is adopted in the periphery protection, which can effectively protect the key components.


Main Configurations




No.ItemBrandQuantity
1Mechanical part of servo walking rail EVS1 set
2High precision reducerTaiwan Kotec1 set
3Linear guide rail and slideHIWIN1 unit
4Precision gear rackTaiwan Kotec1 unit




Standard Color of Equipment




No.ItemColor/color   number
1base and slideRAL7024RAL9002
2shield coverRAL1018RAL3020
3Machined surfaceSpray anti-rust oil
4Machined partsBlackening
