/Single Axis Main Box Servo Positioner

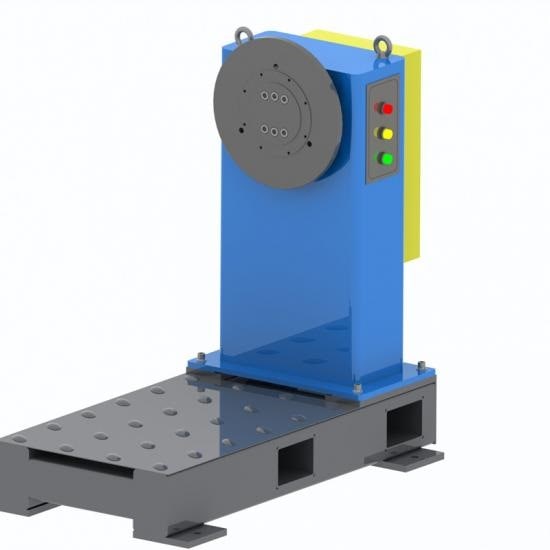

Single Axis Main Box Servo Positioner

This single axis servo positioner consists of fixing base, gyration main spindle case, AC servo motor, RV precise reducer, conductive system, protective cover and electrical control system....
  • item no.:

    EVS-SWP-Z-200/500
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Technical Parameter

Item

EVS-SWP-Z-200
EVS-SWP-Z-500
Rated load200kg (within main axis radius R300mm, center of gravity 300mm from flange)500kg (within main axis radius R400mm, center of gravity 300mm from flange)
Standard radius of gyrationR600mmR600mm
Maximum angle of gyration±360°±360°
Rated speed of gyration70°/S70°/S
Repeated positioning accuracy±0.08mm±0.10mm
Main axis gyration disk sizeφ360mmφ400mm
Positioner dimension(length×width×height)1050mm×620mm×1050mm1200mm×750mm×1200mm
Height of gyration center850mm900mm
Power supplyThree phase 200V ±10% 50Hz (with isolation transformer)Three phase 200V ±10% 50Hz (with isolation transformer)
Insulation gradeHH
Self   weightabout 200kgabout 300kg






Brief Introduction of Structure


  • This single axis servo positioner consists of fixing base, gyration main spindle case, AC servo motor, RV precise reducer, conductive system, protective cover and electrical control system.

  • The fixing base is made by high-quality section, the machining was after stress relief annealing, which ensured the machining accuracy and the use accuracy. Anti-rust appearance paint is beautiful and elegant, and the color can be customized.

  • Gyration main spindle case is made by high-quality material. The stress relief annealing and the machining ensure durability and stability after a long time use.

  • The AC servo motor matching the precise RV reducer can guarantee the high gyration stability, high positioning accuracy, the long durability, the low failure rate.

  • We choose brass as the conductive material, which has good electrical conductivity. The conduct substrate is integral isolated, so the servo motor, robot body, welding power source is completely safe.



Standard Color of Equipment




No. Item Color Name Color Number
1 Case body and main body Peacock blue PB11
2 Base Graphite gray 7026
3 Rotating part and cover Medium yellow Y07
4 Machined parts and machined surface Black oxide  
