Functional Features

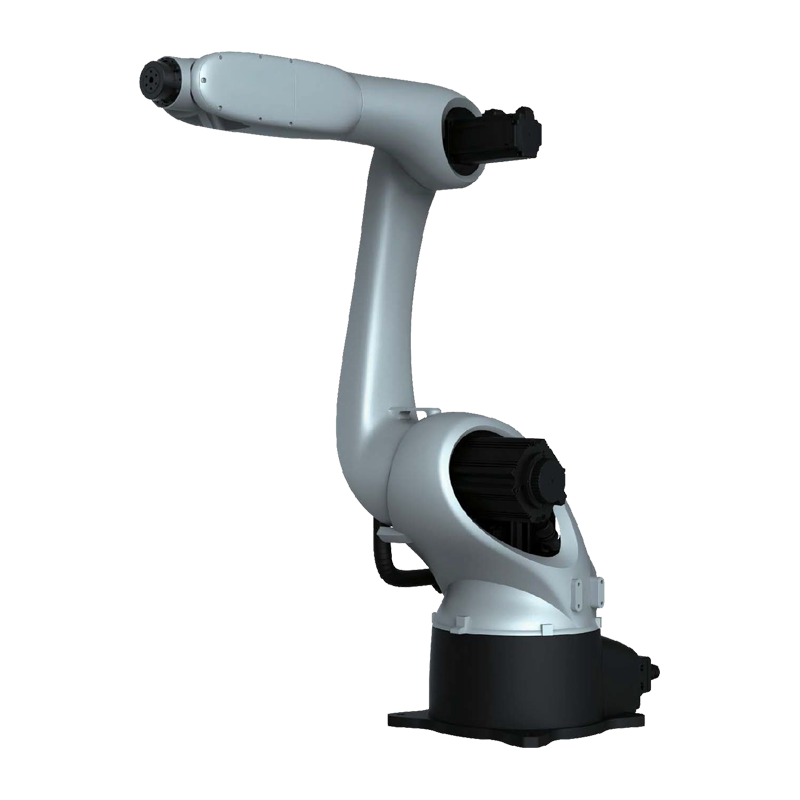

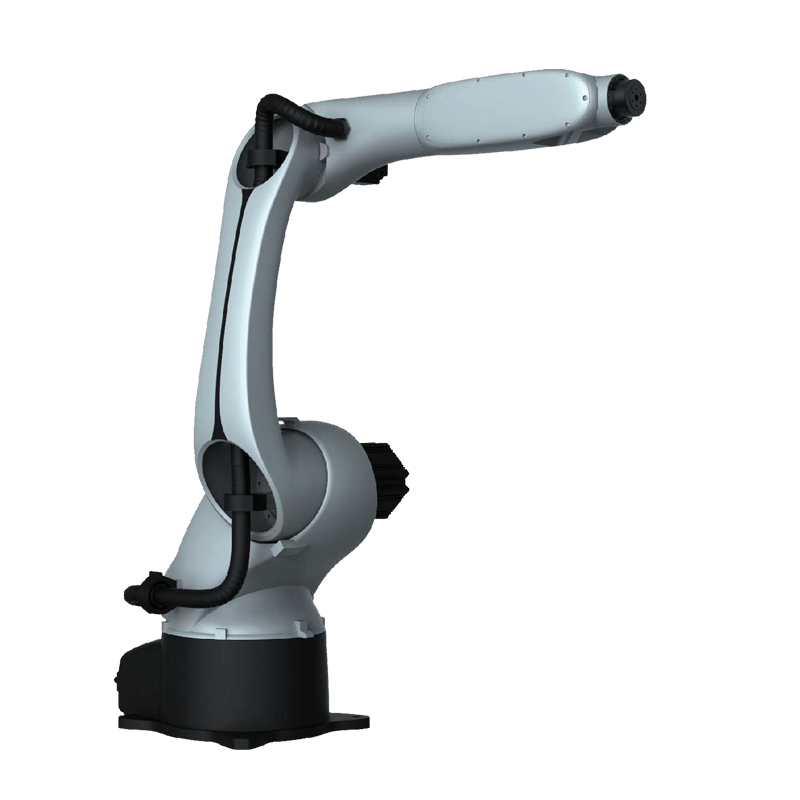

The well-knit design makes the 6 axis robot body more slender than other same level product, so it is more flexible even in a small space, also keep a very low rate of collision with surrounding devices.
Maximum reach 1450mm
Automation and robotics lighter structure design than other same level product, so it is easy to install inside a system or to mount upside -down
High-rigidity arm and top-level servo control technology guarantee the smoothness and stability while the movement.
Rated payload 10kg, easily applied in multiple application
6dof robotic arm built-in cable, no more catheter and cable twisting on the arm. Leak-proof structure, which can be applied in dust and oil-mist environment.
Technical Parameters
Model | EV10-1450 |
Degree of Freedom | 6 |
Payload | 10 kg |
Repeated Positioning Accuracy | ±0.05mm |
Self Weight | Around 190 kg |
Installation Method | Ground Mounted |
Power Capacity | 4kw |
Power Supply | Three-phase 380V |
Maximum Reach Distance | 1450 mm |
Axis J1(turn) | ±170° |
Axis J2(lower arm swinging) | +70°--- -150° |
Axis J3(uper arm swinging) | +150°--- -90° |
Axis J4(arm rotary) | ±170° |
Axis J5(wrist pitch) | ±120° |
Axis J6(wrist rotary) | ±360° |
Axis J1(turn) | 170°/s |
Axis J2(lower arm swinging) | 110°/s |
Axis J3(uper arm swinging) | 240°/s |
Axis J4(arm rotary) | 300°/s |
Axis J5(wrist pitch) | 300°/s |
Axis J6(wrist rotary) | 375°/s |
End flange | solid |
Upside Down Installation | Yes |
Main Application | Handling,assembly, sorting,material loading and unloading etc. |
Motion Range and installation Diagram
