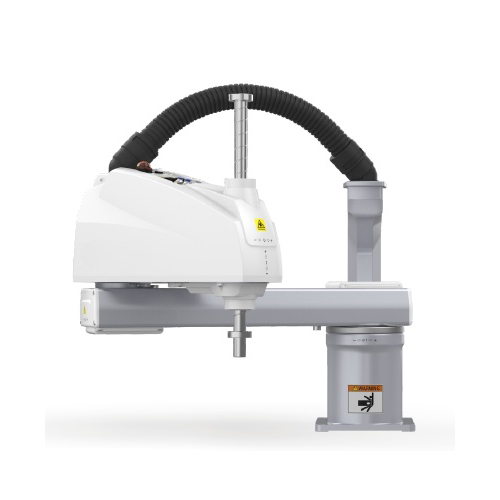

6kg Payload 700mm 4 Axis High Speed High Rigidity SCARA Robot EVS6-700H

Functional FeaturesScara robotwith compact and flexible structure, fast running speed, high transmission accuracy and low noiseRobotic automationhighly rigid arm design realizes high load and high speed in one packageAvailable in 600 to 1000mm arm span; 1kg to 20kg payloadAdapt …

Item No.: EVS6-700H
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days

PRODUCT DETAILS

Functional Features

  • Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise
  • Robotic automation highly rigid arm design realizes high load and high speed in one package
  • Available in 600 to 1000mm arm span; 1kg to 20kg payload
  • Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms
  • Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields

Technical Parameters

Model EVS6-700H
Function material   handling, 6C products
Total axes 4
Maximum reach 700mm
Payload rated   load 2kg
maximum load 6kg
Permissible inertial torque of   rotating axis rated   torque 0.01kg·m2
maximum torque 0.12kg·m2
Repeated positioning accuracy horizontal   coordinate ±0.02mm
z coordinate ±0.01mm
rotation angle ±0.01°
Max speed 1st   axis 7450mm/s
2nd axis 7450mm/s
3rd axis (elevating axis) 1100mm/sec
4th axis (rotation axis) 2000°/sec
Max operating area 1st   axis ±132°
2nd axis ±150°
3rd axis (elevating axis) 200mm
4th axis (rotation axis) ±360°
Installation form Floor   mounted
Robot weight(without cable) 21Kg
Power consumption 1.1kw
Installation environment Temperature 0~+45℃
Humidity 20~80%RH   (no condensation)
Vibration Under   4.9M/S132
Application Capable of working with vision system. And   can be applicated in handling,assembly, sorting,material loading and unloading etc

Dimension Drawing

Robot EVS6-700H Dimension Drawing



Motion Range Drawing

Robot EVS6-700H Motion Range Drawing
