/10kg Payload 600mm 4 Axis High Speed High Rigidity SCARA Robot EVS10-600H

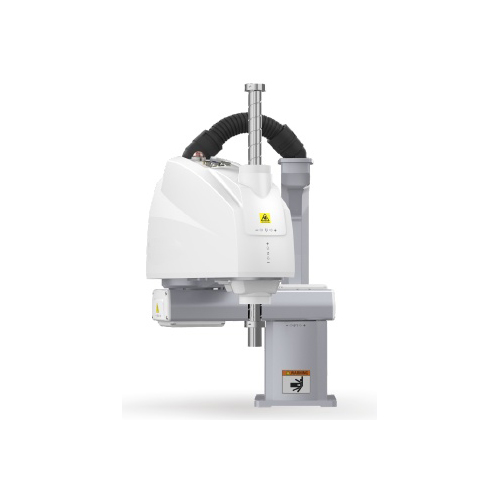

10kg Payload 600mm 4 Axis High Speed High Rigidity SCARA Robot EVS10-600H

Functional FeaturesScara robotwith compact and flexible structure, fast running speed, high transmission accuracy and low noiseRobotic automationhighly rigid arm design realizes high load and high speed in one packageAvailable in 600 to 1000mm arm span; 1kg to 20kg payloadAdapt t...
  • item no.:

    EVS10-600H
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Functional Features


  • Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise

  • Robotic automation highly rigid arm design realizes high load and high speed in one package

  • Available in 600 to 1000mm arm span; 1kg to 20kg payload

  • Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms

  • Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields



Technical Parameters


ModelEVS10-600H
Functionmaterial   handling, 7C products
Total axes4
Maximum reach600mm
Payloadrated   load5kg
maximum load10kg
Permissible inertial torque of   rotating axisrated   torque0.05kg·m2
maximum torque0.45kg·m2
Repeated positioning accuracyhorizontal   coordinate±0.025mm
z coordinate±0.01mm
rotation angle±0.01°
Max speed1st   axis9100mm/s
2nd axis9100mm/s
3rd axis (elevating axis)1098mm/s
4th axis (rotation axis)1581°/sec
Max operating area1st   axis±132°
2nd axis±150°
3rd axis (elevating axis)200mm/300mm
4th axis (rotation axis)±360°
Installation formFloor   mounted
Robot weight(without cable)30kg
Power consumption2.3kw
Installation environmentTemperature0~+45
Humidity20~80%RH   (no condensation)
VibrationUnder   4.9M/S132
ApplicationCapable of working with vision system. And   can be applicated in handlingassembly, sorting,material loading and unloading etc



Dimension Drawing








Motion Range Drawing
