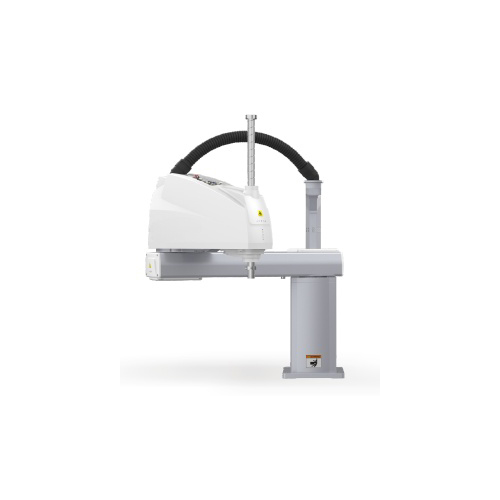

20kg Payload 1000mm 4 Axis High Speed High Rigidity SCARA Robot EVS20-1000H

Functional Features Scara robotwith compact and flexible structure, fast running speed, high transmission accuracy and low noise Robotic automation highly rigid arm design realizes high load and high speed in one package Available in 600 to 1000mm arm span; 1kg to 20kg payload …

Item No.: EVS20-1000H
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days

PRODUCT DETAILS

Functional Features

  • Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise
  • Robotic automation highly rigid arm design realizes high load and high speed in one package
  • Available in 600 to 1000mm arm span; 1kg to 20kg payload
  • Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms
  • Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields

Technical Parameters

Model EVS20-1000H
Function material   handling, 12C products
Total axes 4
Maximum reach 1000mm
Payload rated   load 10kg
maximum load 20kg
Permissible inertial torque of   rotating axis rated   torque 0.05kg·m2
maximum torque 0.45kg·m2
Repeated positioning accuracy horizontal   coordinate ±0.025mm
z coordinate ±0.01mm
rotation angle ±0.01°
Max speed 1st   axis 8940mm/s
2nd axis 8940mm/s
3rd axis (elevating axis) 2020mm/s
4th axis (rotation axis) 1400°/sec
Max operating area 1st   axis ±131°
2nd axis ±150°
3rd axis (elevating axis) 420mm
4th axis (rotation axis) ±360°
Installation form Floor   mounted
Robot weight(without cable) 55kg
Power consumption 2.55kw
Installation environment Temperature 0~+45℃
Humidity 20~80%RH   (no condensation)
Vibration Under   4.9M/S132
Application Capable of working with vision system. And   can be applicated in handling,assembly, sorting,material loading and unloading etc

Dimension Drawing

EVS20-1000H Dimension Drawing



Motion Range Drawing

EVS20-1000H Motion Range Drawing
