/3kg payload 620mm reaching distance 6 axis collaborative robot arm

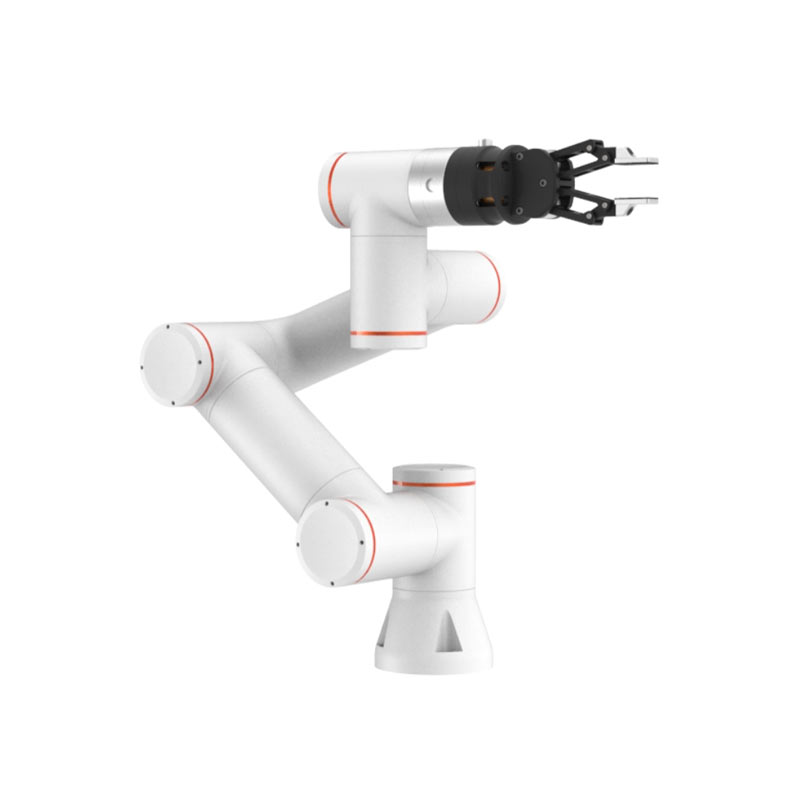

3kg payload 620mm reaching distance 6 axis collaborative robot arm

The cobot arm is mainly used for handling, palletizing, pick and place, also arc welding, with high reliability and excellent performacne. This cobot is able to operate multiple procedure in narrow space, lightweight, compact structure. With collaborative feature, the cobot can extend your time and space, liberate human from repeat work and hazard enviroment. 3 kg payload, 620 reaching distance, ±0.02mm repeat positioning accrucy....
  • item no.:

    EVC3
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction




  • The cobot arm is mainly used for handling, palletizing, pick and place, also arc welding, with high reliability and excellent performacne.

  • This cobot is able to operate multiple procedure in narrow space, lightweight, compact structure.

  • With collaborative feature, the cobot can extend your time and space, liberate human from repeat work and hazard enviroment.

  • 3 kg payload, 620 reaching distance, ±0.02mm repeat positioning accrucy.



Technical Details


ModelEVC3
Specificationpayload3kg
reach620mm
dof6
HMI10.1 inch teach pendant or mobile terminal APP
Movementrepeatability±0.02mm
axis movementmax rangemax speed
axis 1±175°±180°/s
axis 2+ 85°/- 265°±180°/s
axis 3±150°±180°/s
axis 4+ 85°/- 265°±180°/s
axis 5±175°±180°/s
axis 6±175°±180°/s
typical TCP speed1m/s
FeaturesIP levelIP66
noise<65dB
mounting agleany direction
end of arm  I/Odigital input 2   digital output 2

analog input 1 analog   output 1
end of arm power supply24V/2A
interface&opennessTCP/IP, RS485
communication interfaceC/C++, Lua, Pathon, ROS
Physicsbase mounting   diameter130mm
weightabout 15kg
operating temperature0-45
operating humidity<90%RH
materialaluminum, steel

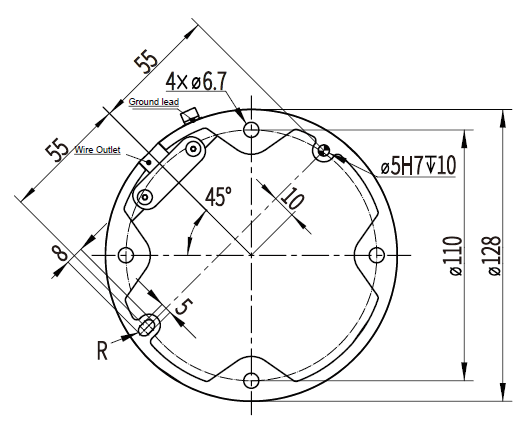

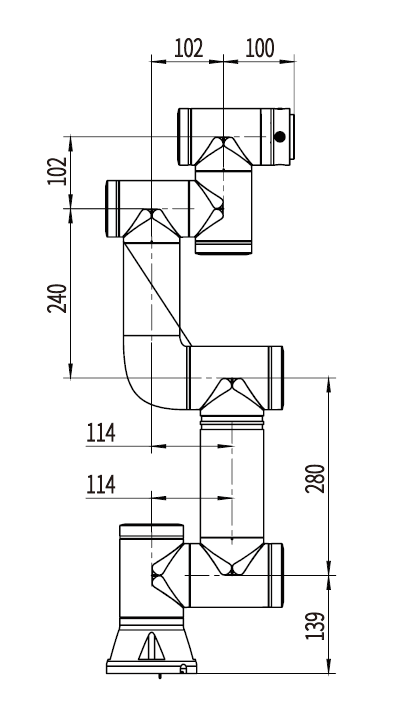

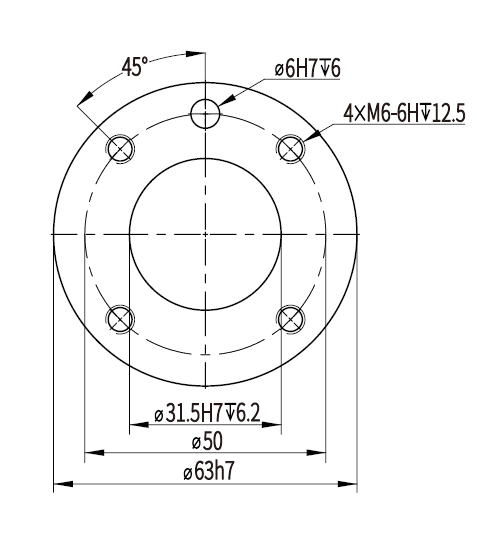

Robot Overall Dimension & Base and End Flange Dimension

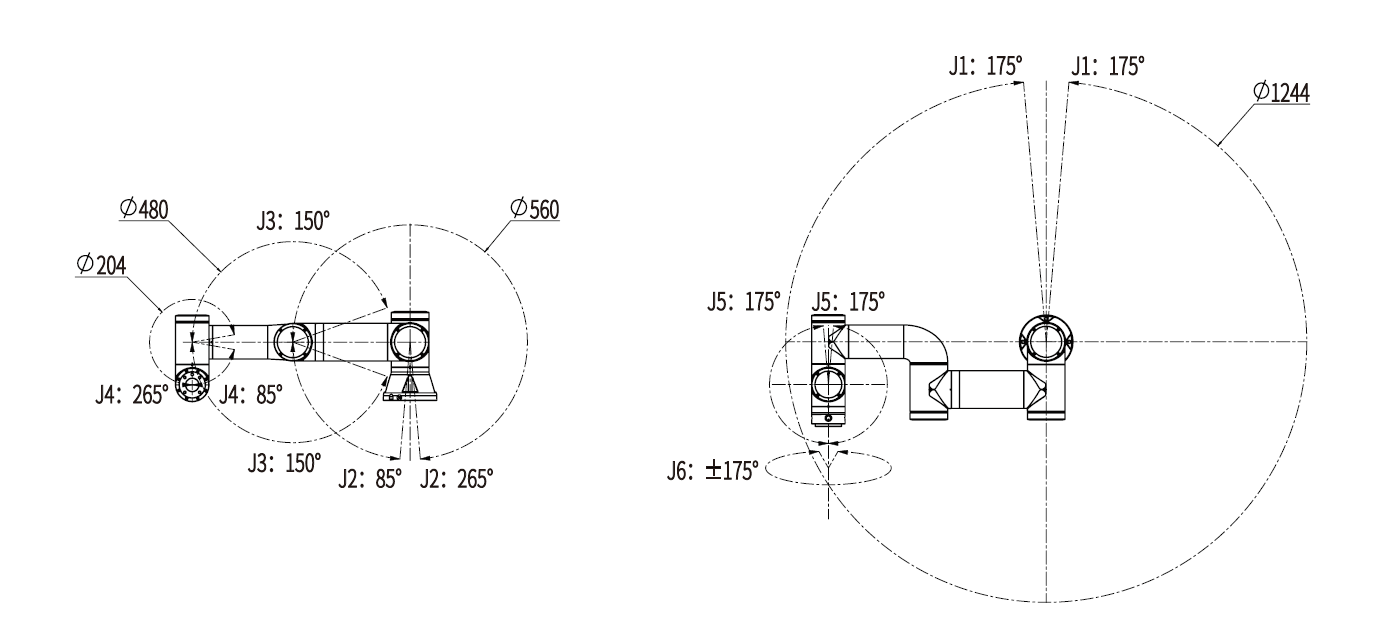

Robot Motion Range


fr3-motion range.jpgfr3-motion range.jpg
