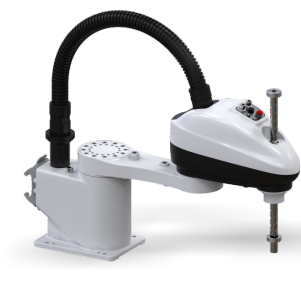

3kg Payload 400mm 4 Axis SCARA Robot

EVS light duty SCARA robot is with compact and flexible structure. It can be applied in handling, palletizing, assembly, 3C and other fields....
  • item no.:

    SCR003-400
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai port or designated prot
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Functional Features


  • Scara robot with compact and flexible structure, fast running speed, high transmission accuracy and low noise
  • Robotic automation highly rigid arm design realizes high load and high speed in one package
  • Available in 600 and 400mm arm span; 3kg or 6kg payload
  • Adapt to G3 control cabinet, provide 23 input and 23 output custom IO; support serial port, network, USB and other interface forms
  • Cnc robot suitable for handling, palletizing, assembly, 3C and other application fields



Technical Parameters




Robot model SCR003-400
Function material handling, 3C products
Total axes 4
Maximum reach 400mm
Payload rated load 1kg
maximum load 3kg
Permissible inertial torque of rotating axis rated torque 0.005kg·m2
maximum torque 0.05kg·m2
Repeated positioning accuracy 1st axis+2nd axis ±0.01mm
3rd axis (elevating axis) ±0.01mm
4th axis (rotation axis) ±0.01°
Max speed 1st axis 720°/sec
2nd axis 720°/sec
3rd axis (elevating axis) 1000mm/sec
4th axis (rotation axis) 2500°/sec
Max operating area 1st axis ±132°
2nd axis ±141°
3rd axis (elevating axis) 170mm
4th axis (rotation axis) ±360°
Installation parameters Floor mounted
Robot weight 13Kg
Power consumption 0.7kw
Installation environment Temperature 0~+45℃
Humidity 20~80%RH (no condensation)
Vibration Under 4.9M/S²



Dimension Drawing


3kg Payload 400mm 4 Axis SCARA Robotic Arm






Motion Range Drawing


3kg Payload 400mm 4 Axis SCARA Robotic Arm
