/6kg Payload 915mm Reaching Distance Palletizing Robot

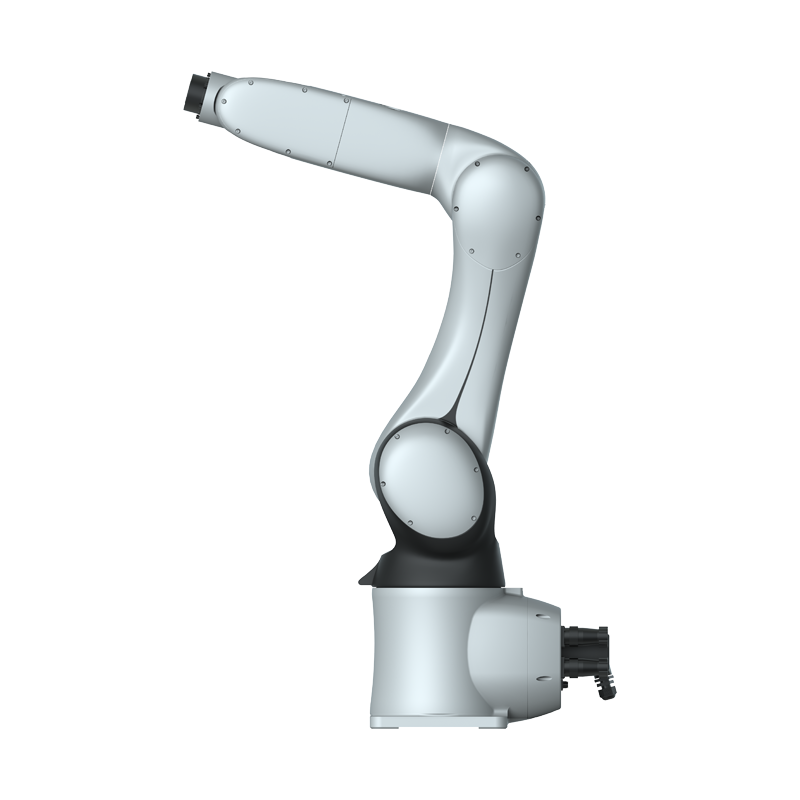

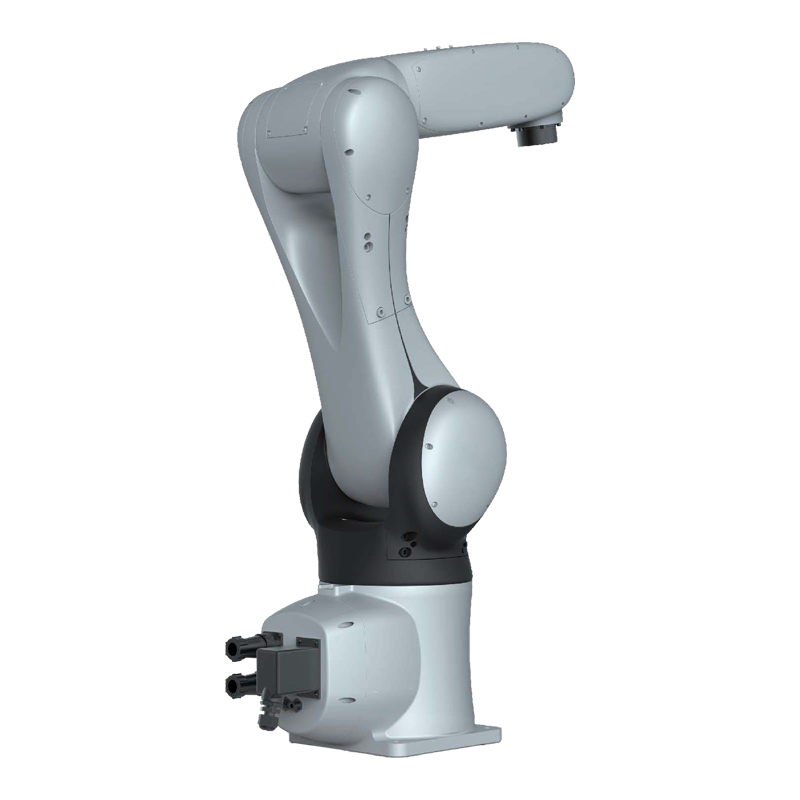

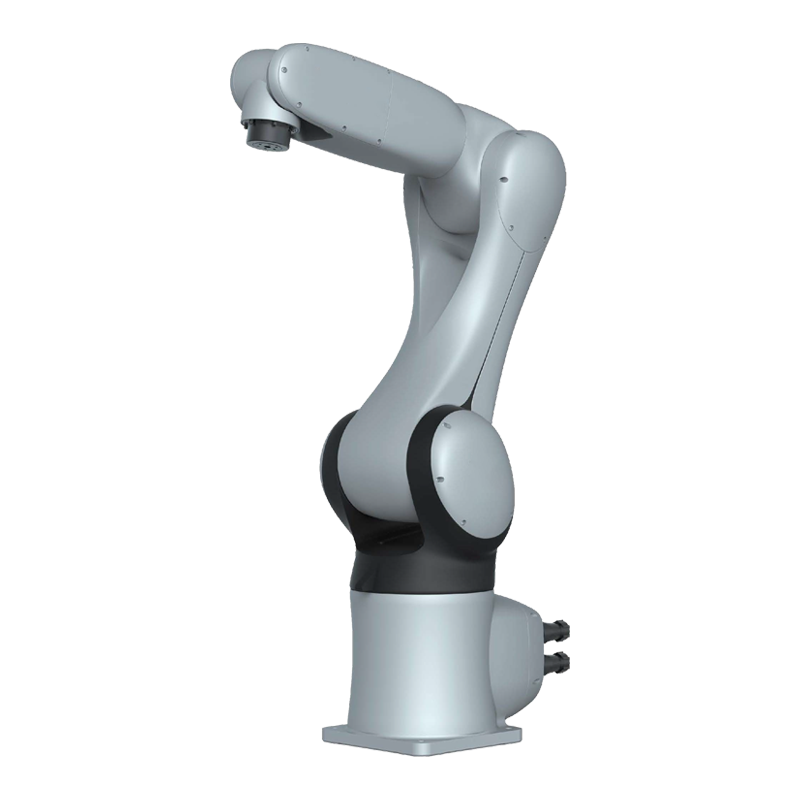

6kg Payload 915mm Reaching Distance Palletizing Robot

Palletizing robot with fast speed and high flexibility, which can perform the palletizing tasks automatically and efficiently....
  • item no.:

    EV6-900
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Functional Features


  • The well-knit design makes the 6 dof robotic arm body more slender than other same level product, so it is more flexible even in a small space, also keep a very low rate of collision with surrounding devices.

  • Maximum reach 915mm

  • Industrial robots lighter structure design than other same level product, so it is easy to install inside a system or to mount upside -down

  • High-rigidity arm and top-level servo control technology guarantee the smoothness and stability while the movement.

  • Rated payload 6kg, easily applied in multiple application

  • Robotic arm built-in cable, no more catheter and cable twisting on the arm. Leak-proof structure, which can be applied in dust and oil-mist environment.



Technical Parameters




ModelEV6-900
Degree of Freedom6
Payload6   kg
Repeated Positioning Accuracy±0.02mm
Self WeightAround   60 kg
Installation MethodGround   Mounted/wall mounted
Power Capacity4.5   kw
Power SupplyOne-phase   220V
Maximum Reach Distance915   mm
Axis J1(turn)±170°
Axis J2(lower arm swinging)+100°---   -135°
Axis J3(uper arm swinging) +100°----155°
Axis J4(arm rotary)±170°
Axis J5(wrist pitch)±120°
Axis J6(wrist rotary)±360°
Axis J1(turn)337.5°/s
Axis J2(lower arm swinging)270°/s
Axis J3(uper arm swinging)375°/s
Axis J4(arm rotary)300°/s
Axis J5(wrist pitch)375°/s
Axis J6(wrist rotary)468°/s
End flangesolid
Upside Down InstallationYes
Main ApplicationHandlingassembly,   sorting,material loading and unloading etc.



Installation Interface Diagram


SYR006-900 palletizing robot installation dimension

Motion Range Diagram


SYR006-900 palletizing robot motion range diagram
