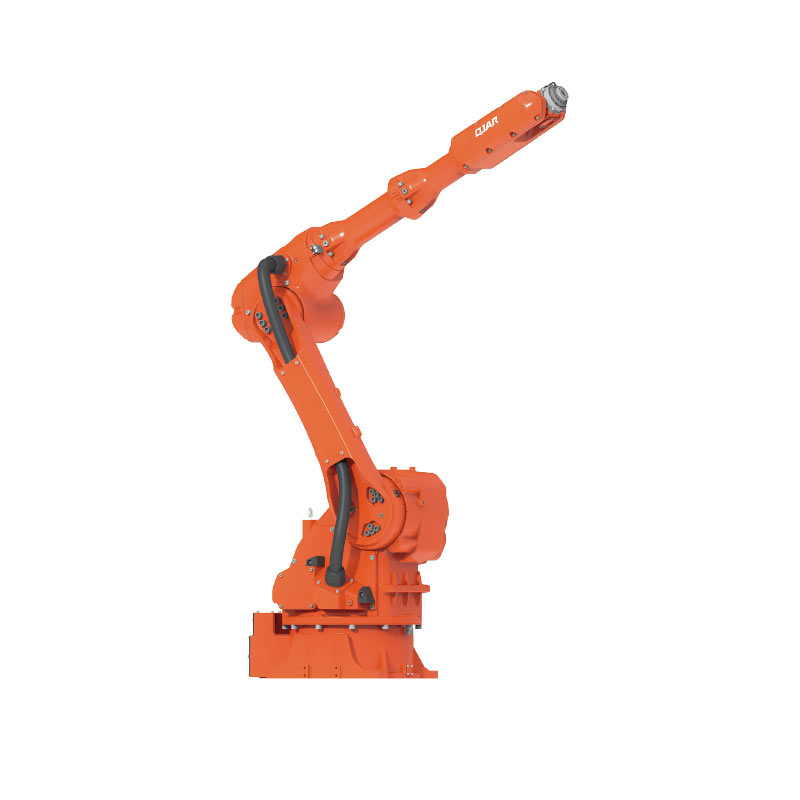

10kg Payload 2001mm Reaching Distance China 6 Axis welding handling Robot

QJAR light-weight and high-quality 6 axis robot. It's with high flexibility and fast running speed....
  • item no.:

    QJR10-2000
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction


  • Payload 10kg, reach distance of 2 meters, the design is highly compact, flexible installation with ground or inverse position.

  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other wide range of applications.


Technical Details




ModelQJR10-2000
Axis Number6
Payload10kg
Repeat Positioning±0.05mm
Max Armspan2001mm
Motion RangeJ1±172°
J2+147°-115°
J3+83°-98°
J4±167°
J5±115°
J6±360°
Max Speed J1154   °/ s
J2154   °/ s
J3171   °/ s
J4401   °/ s
J5515   °/ s
J6658   °/ s
Allowable TorqueJ424.6   N.m
J524.6   N.m
J69.8   N.m
Inertia Moment J40.63   kg.m2
J50.63   kg.m2
J60.1   kg.m2
Robot Body Weight275kg
Power Capacity3.6kVA
Cabinet   Size580*650*960mm
Cabinet Weight130kg
SourceThree-phase   four-wire
Installing   FormGround   Mounted/ wall mounted

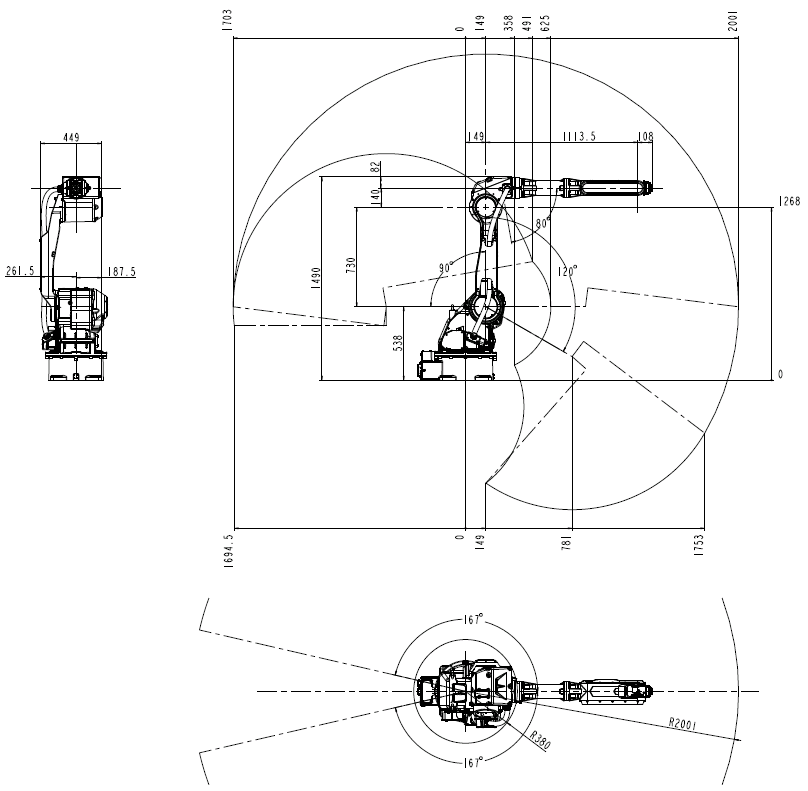

Robot Overall Dimension and Motion Range Drawing


please ask our sales

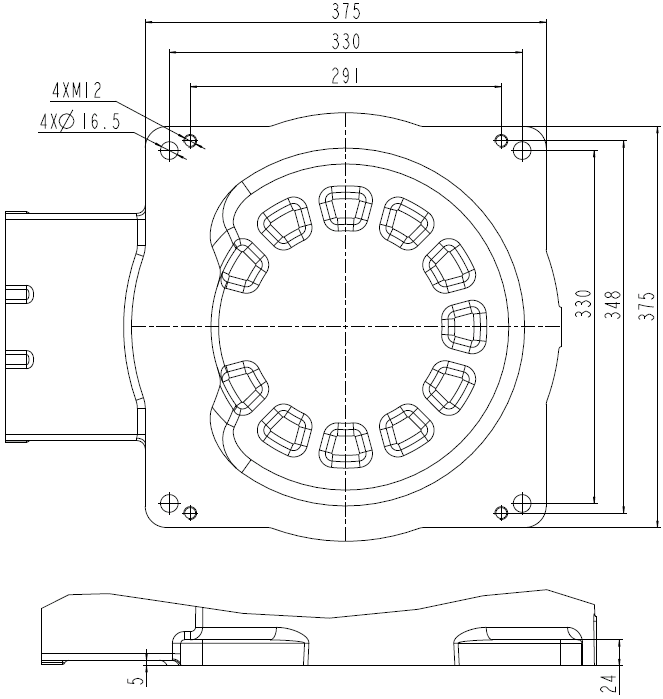

Robot Base Mounting Dimension Drawing



please ask our sales

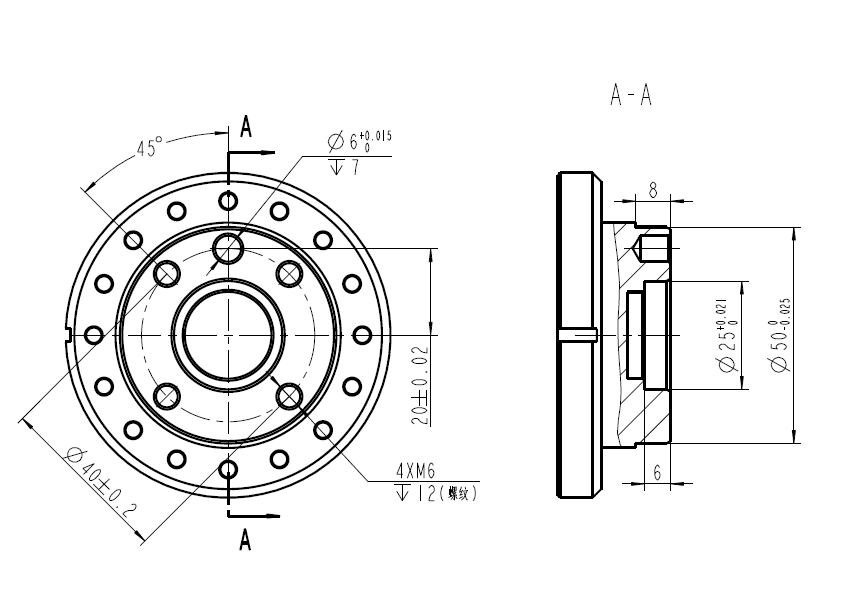

Robot End Installation Dimension Drawing



please ask our sales
