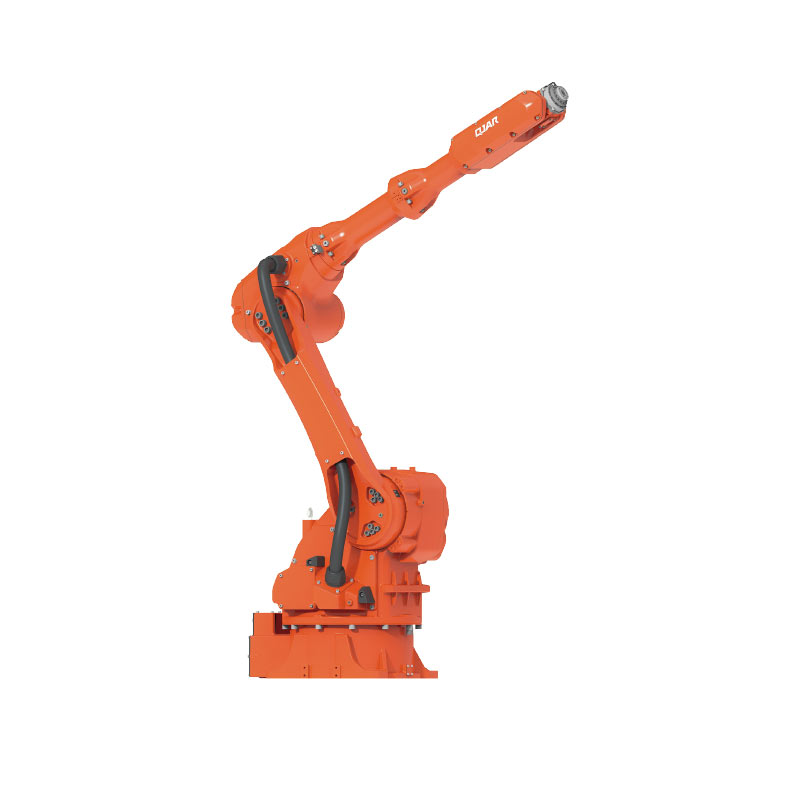

10kg Payload 2001mm Reaching Distance China handling Robotic Arm

QJAR 10kg payload China handling robot with 2m maximum reaching distance. Large working space and solid robust structure....
  • item no.:

    QJR10-2000
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction


  • Payload 10kg, reach distance of 2 meters, the design is highly compact, flexible installation with ground or inverse position.

  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other wide range of applications.


Technical Details





ModelQJR10-2000
Axis Number6
Payload10kg
Repeat Positioning±0.05mm
Max Armspan2001mm
Motion RangeJ1±172°
J2+147°-115°
J3+83°-98°
J4±167°
J5±115°
J6±360°
Max Speed J1154   °/ s
J2154   °/ s
J3171   °/ s
J4401   °/ s
J5515   °/ s
J6658   °/ s
Allowable TorqueJ424.6   N.m
J524.6   N.m
J69.8   N.m
Inertia Moment J40.63   kg.m2
J50.63   kg.m2
J60.1   kg.m2
Robot Body Weight275kg
Power Capacity3.6kVA
Cabinet   Size580*650*960mm
Cabinet Weight130kg
SourceThree-phase   four-wire
Installing   FormGround   Mounted/ wall mounted






Robot Overall Dimension and Motion Range Drawing


please ask our sales


Robot Base Mounting Dimension Drawing


please ask our sales

Robot End Installation Dimension Drawing


please ask our sales
