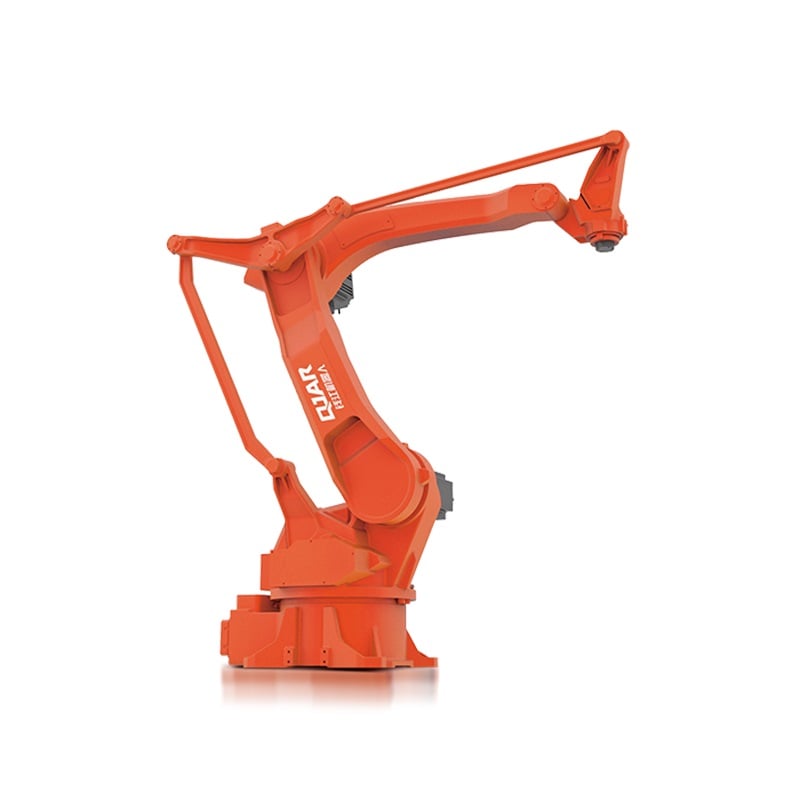

180kg Payload 3153mm Reaching Distance China palletizing punching machine Robotic Arm
[field:text/] [field:text/]

180kg Payload 3153mm Reaching Distance China palletizing punching machine Robotic Arm

QJAR big-payload 4 axis robot. It is with high speed and high stability....

  • item no.:

    QJRB180-1

  • Payment:

    T/T

  • product origin:

    China

  • shipping port:

    Shanghai or designated port

  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction



  • High-speed and stable, all axis operating at low power output simple equipment composition can be used with special palletizing software.
  • 180kg payload 3153mm reach robotic arm widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.





Technical Details



Model QJRB180-1
Axis Number 4
Payload 180kg
Repeat Positioning ±0.5mm
Max Armspan 3153.7mm
Motion Range J1 ±170º
J2 ﹢95º,﹣47º
J3 ﹢112º,﹣20º
J4 ±360º
J5 _
J6 _
Max Speed  J1 129º/s
J2 132º/s
J3 132º/s
J4 298º/s
J5 _
J6 _
Allowable Torque J4 _
J5 _
J6 _
Inertia Moment  J4 3.25kg.m²
J5 _
J6 _
Robot Body Weight 1400kg
Power Capacity 17.5kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 140kg
Source Three-phase five-wire
Installing Form Ground





Robot Overall Dimension and Motion Range Drawing


QJRB180-1 robotic arm dimension and motion range


Robot Base Mounting Dimension Drawing


QJRB180-1 robotic arm base mounting dimension drawing


Robot End Installation Dimension Drawing


QJRB180-1 robotic arm robot end installation dimension drawing

SEND MESSAGE

If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Product

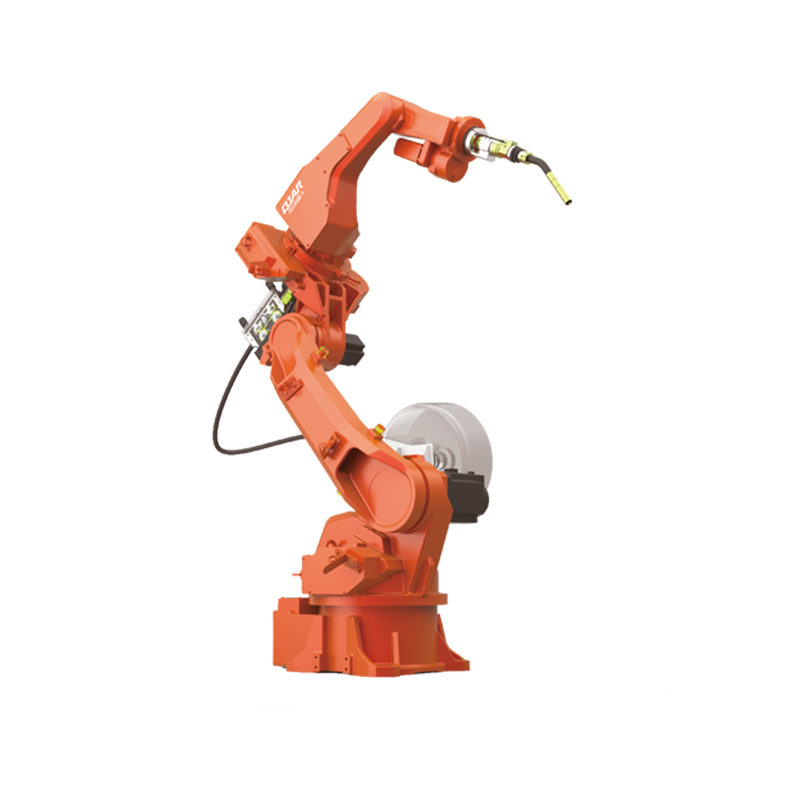

4kg Payload 1410.5mm Reaching Distance China welding Robotic Arm 4kg Payload 1410.5mm Reaching Distance China welding Robotic Arm
QJAR highly efficient China welding robot. It's with center-hollow structure can be equipped with inside welding gun...

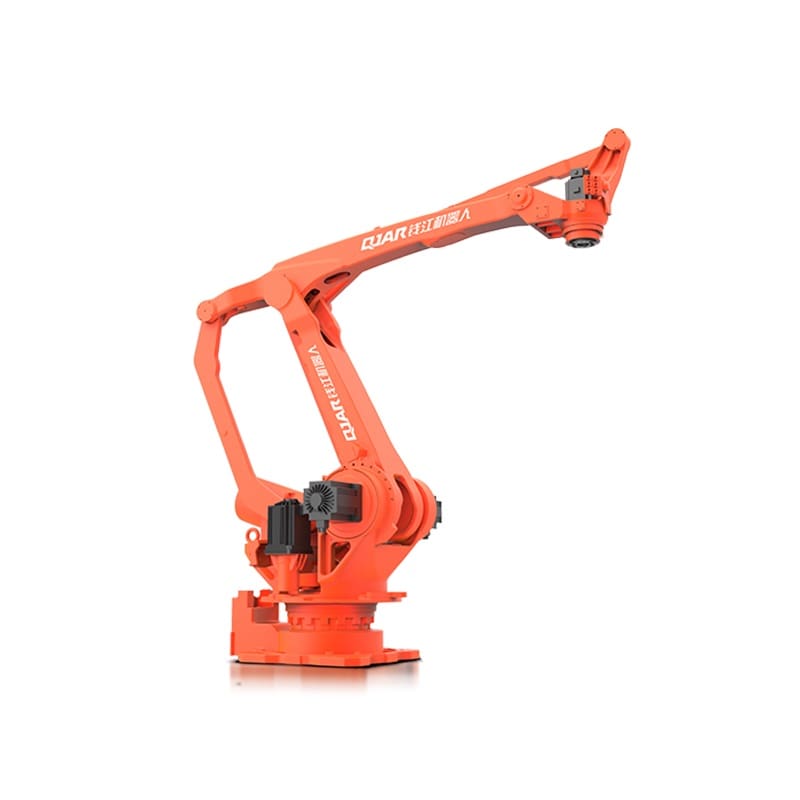

30kg Payload 1820mm Reaching Distance China stamping machine tending Robotic Arm 30kg Payload 1820mm Reaching Distance China stamping machine tending Robotic Arm
QJAR high-speed and stable 4 axis robot. Simple equipment composition can be used with special palletizing software....

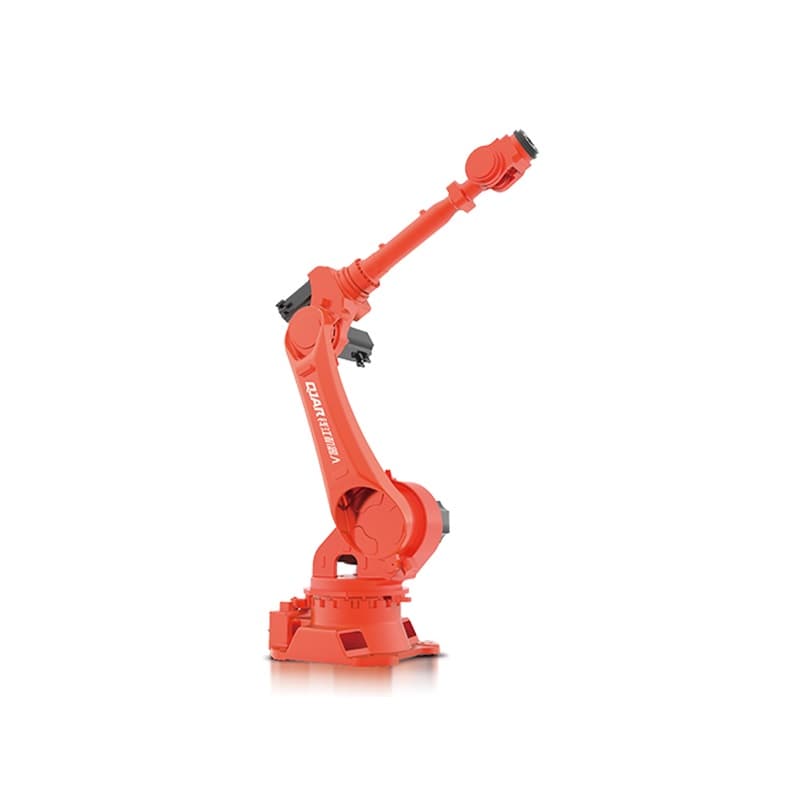

50kg Payload 2012mm Reaching Distance China handling Robotic Arm 50kg Payload 2012mm Reaching Distance China handling Robotic Arm
QJAR medium payload 6-axis robot arm. It's an ideal choice for your automation project....
Explosion Proof 10kg Payload 2035mm Arm Span Painting Robot Explosion Proof 10kg Payload 2035mm Arm Span Painting Robot
QJAR 10kg payload explosion-proof painting robot. It's with bus structure and covenient for expansion and high speed....

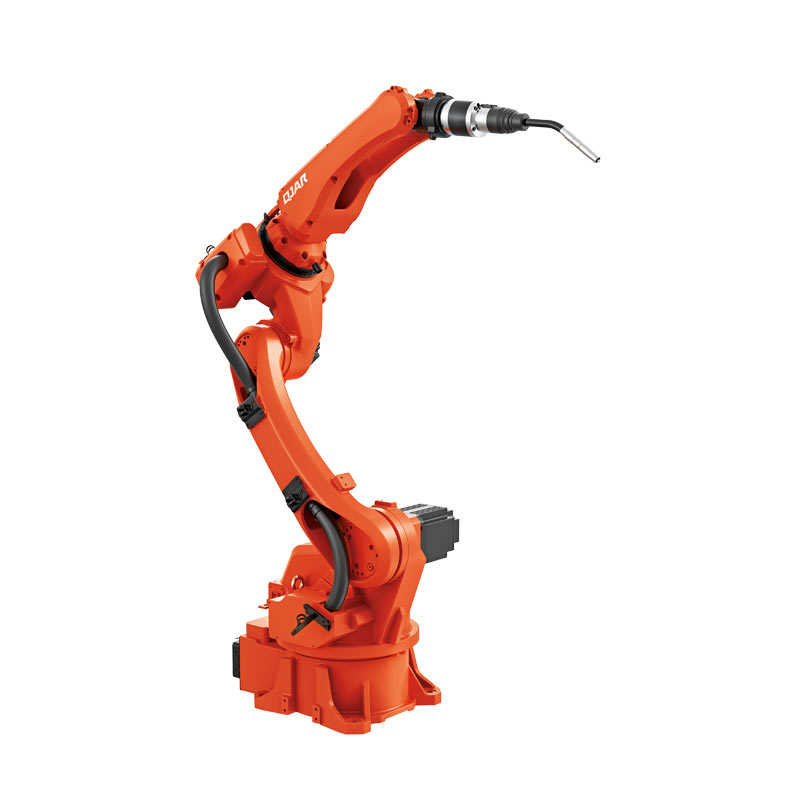

6kg Payload 1456mm Reaching Distance China welding Robotic Arm 6kg Payload 1456mm Reaching Distance China welding Robotic Arm
Brief IntroductionThe 6kg payload robotic armis mainly used for arc welding, with high reliability and excellentvalue for money. Its features are as follows.Hollow structural arms and wrists, built-in welding cable, able to operate welding procedure in narrow space, lightweight, co...

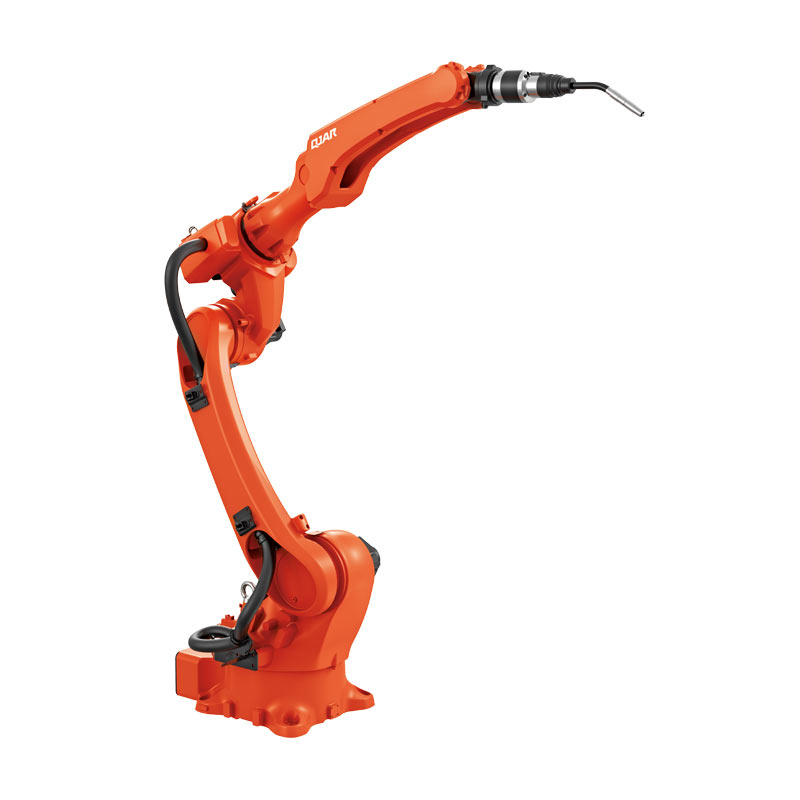

6kg Payload 2014mm Reaching Distance China welding Robotic Arm 6kg Payload 2014mm Reaching Distance China welding Robotic Arm
