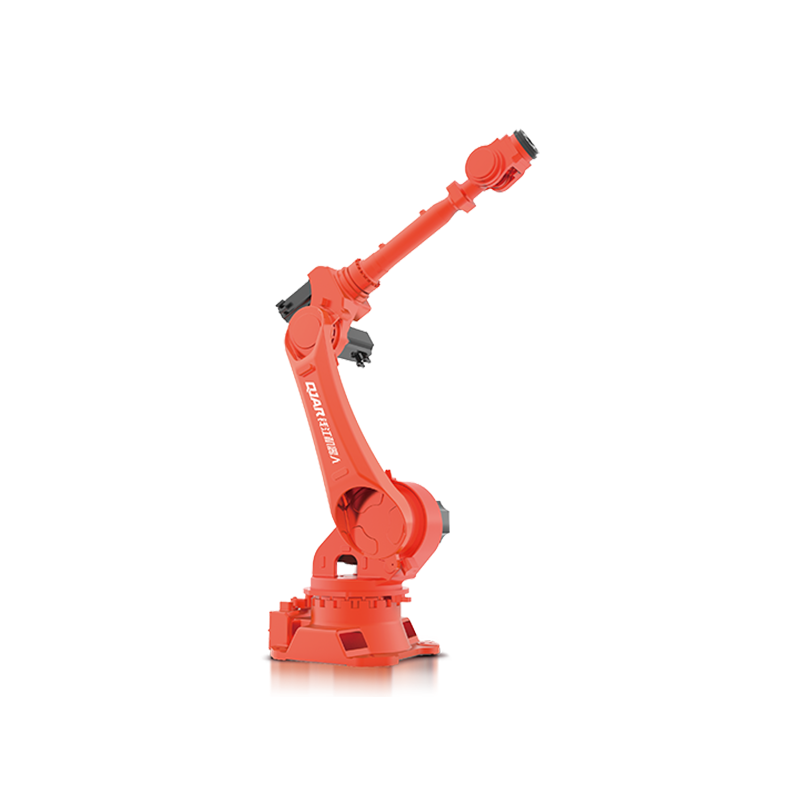

QJAR 50kg Payload 2012mm Reaching Distance Palletizing Robot

QJAR medium payload palletizing robot. It's an ideal choice for your automation project....
  • item no.:

    QJR50-1
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction




  • Payload 50kg, reach distance of 2meters, the design is highly compact.
  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, deburring, loading and unloading, handling, sorting, assembly and other wide range of applications.



Technical Details




Model QJR50-1
Axis Number 6
Payload 50kg
Repeat Positioning ±0.07mm
Max Armspan 2012.4mm
Motion Range J1 ±180º
J2 ﹢135º,﹣90º
J3 ﹢82º,﹣205º
J4 ±360º
J5 ±120º
J6 ±360º
Max Speed  J1 155º/s
J2 120º/s
J3 155º/s
J4 250º/s
J5 250º/s
J6 350º/s
Allowable Torque J4 245N.m
J5 245N.m
J6 147N.m
Inertia Moment  J4 12.5kg.m²
J5 12.5kg.m²
J6 4.5kg.m²
Robot Body Weight 580kg
Power Capacity 10kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 120kg
Source Three-phase four-wire
Installing Form Ground



Robot Overall Dimension and Motion Range Drawing



QJR50-1 palletizing robot dimension and motion range

Robot Base Mounting Dimension Drawing



QJR50-1 palletizing robot base mounting dimension drawing

Robot End Installation Dimension Drawing



QJR50-1 palletizing robot robot end installation dimension drawing
