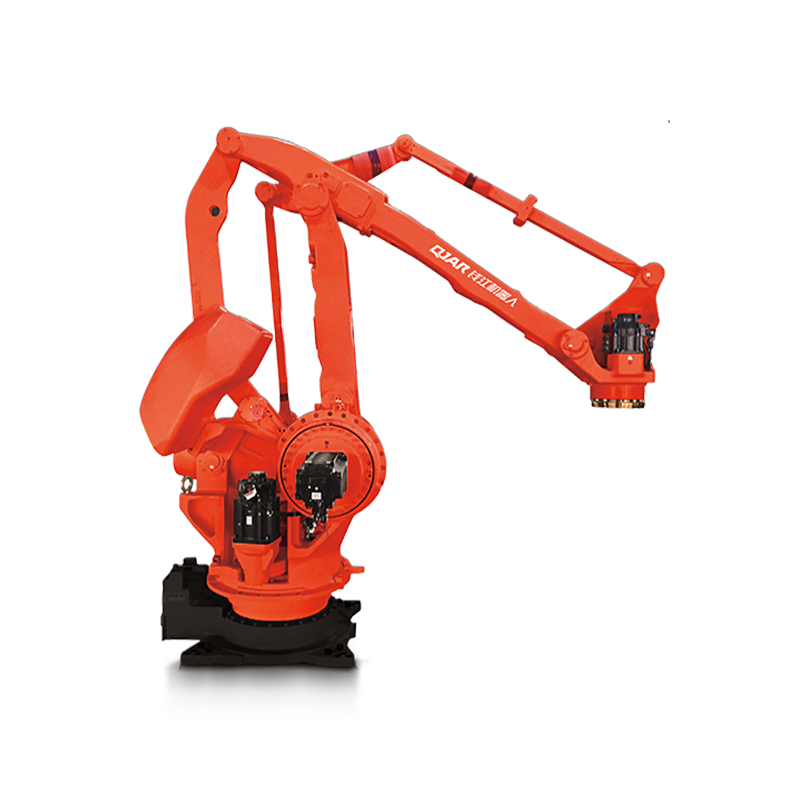

800kg Payload 3159mm Reaching Distance China handing palletizing Robotic Arm

QJAR giant 800kg payload 4 axis robot. It's with big payload and high reliability....
  • item no.:

    QJRB800-1
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction


Special purpose high-load palletizing machine, high-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software



Technical Details




Model QJRB800-1
Axis Number 4
Payload 800kg
Repeat Positioning ±0.5mm
Max Armspan 3159mm
Motion Range J1 ±185º
J2 ﹢95º,﹣48º
J3 ﹢112º,﹣17.5º
J4 ±360º
J5 _
J6 _
Max Speed  J1 65º/s
J2 65º/s
J3 65º/s
J4 115º/s
J5 _
J6 _
Allowable Torque J4 _
J5 _
J6 _
Inertia Moment  J4 340kg.m²
J5 _
J6 _
Robot Body Weight 2550kg
Power Capacity 23kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 140kg
Source Three-phase five-wire
Installing Form Ground





Robot Overall Dimension and Motion Range Drawing



QJRB800-1 robotic arm dimension and motion range


Robot Base Mounting Dimension Drawing



QJRB800-1 robotic arm base mounting dimension drawing


Robot End Installation Dimension Drawing



QJRB800-1 robotic arm robot end installation dimension drawing
