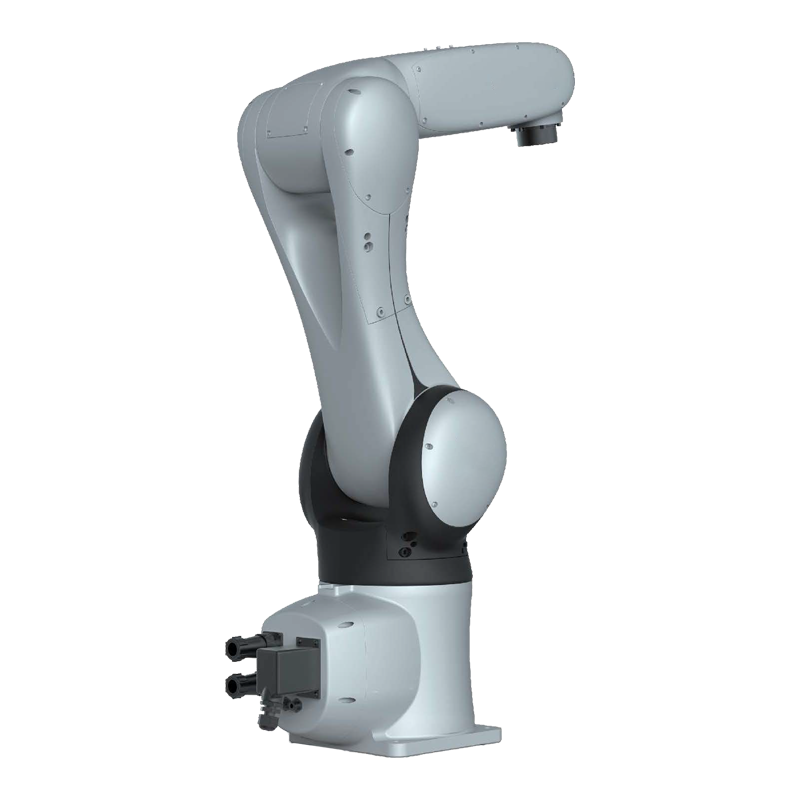

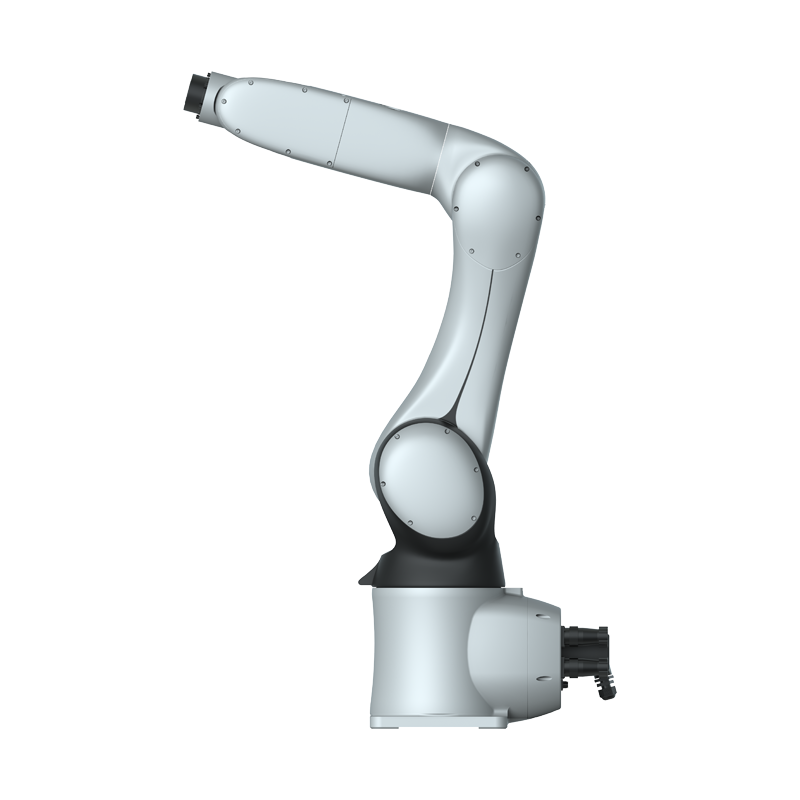

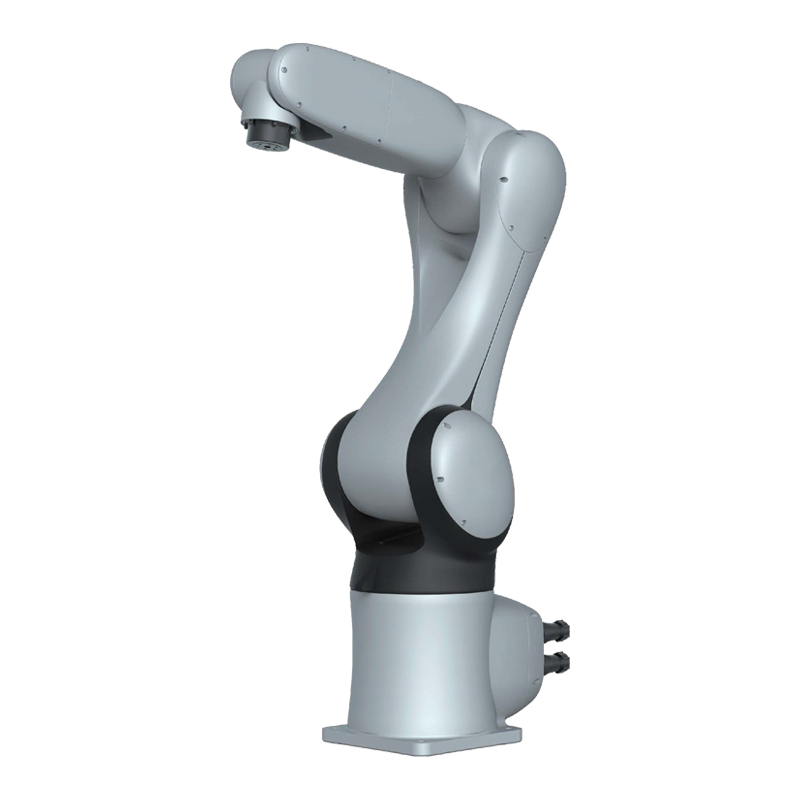

6kg Payload 915mm Reaching Distance 6 Axis Robot

Small payload 6 axis robot is with flexible structure and high speed. It's easy to operate and easy to maintain....
  • item no.:

    EV6-900
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Functional Features


  • The well-knit design makes the industrial robot body more slender than other same level product, so it is more flexible even in a small space, also keep a very low rate of collision with surrounding devices.

  • Maximum reach 915mm

  • Six axis robot lighter structure design than other same level product, so it is easy to install inside a system or to mount upside -down

  • High-rigidity arm and top-level servo control technology guarantee the smoothness and stability while the movement.

  • Rated payload 6kg, easily applied in multiple application

  • 6dof robotic arm built-in cable, no more catheter and cable twisting on the arm. Leak-proof structure, which can be applied in dust and oil-mist environment.



Technical Parameters




ModelEV6-900
Degree of Freedom6
Payload6   kg
Repeated Positioning Accuracy±0.02mm
Self WeightAround   60 kg
Installation MethodGround   Mounted/wall mounted
Power Capacity4.5   kw
Power SupplyOne-phase   220V
Maximum Reach Distance915   mm
Axis J1(turn)±170°
Axis J2(lower arm swinging)+100°---   -135°
Axis J3(uper arm swinging) +100°----155°
Axis J4(arm rotary)±170°
Axis J5(wrist pitch)±120°
Axis J6(wrist rotary)±360°
Axis J1(turn)337.5°/s
Axis J2(lower arm swinging)270°/s
Axis J3(uper arm swinging)375°/s
Axis J4(arm rotary)300°/s
Axis J5(wrist pitch)375°/s
Axis J6(wrist rotary)468°/s
End flangesolid
Upside Down InstallationYes
Main ApplicationHandlingassembly,   sorting,material loading and unloading etc.



Installation Interface Diagram


SYR006-900 6 axis robot installation dimension

Motion Range Diagram


SYR006-900 6 axis robot motion range diagram
