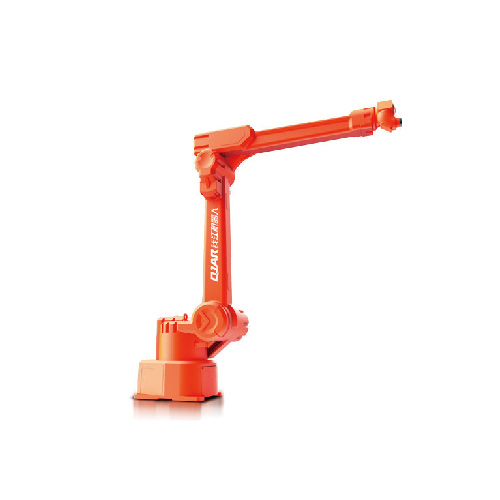

QJAR 6kg Payload 2700mm Reaching Distance Painting Robot
[field:text/]

QJAR 6kg Payload 2700mm Reaching Distance Painting Robot

QJAR 10kg payload painting robot with high repeated positioning accuracy and compact structure....

  • item no.:

    QJR6-2700P

  • Payment:

    T/T

  • product origin:

    China

  • shipping port:

    Shanghai or designated port

  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction



  • Payload 6 kg, reach distance of 2.7 meters, the design is highly compact, flexible installation with ground or inverse position.

  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other wide range of applications.





Technical Details



ModelQJR6-2700P
Axis   Number6
Payload6kg
Repeat   Positioning±0.5mm
Max   Armspan2701mm
Motion RangeJ1±95º
J2﹢102º,﹣53º
J3﹢80º,﹣80º
J4±260º
J5±270º
J6±260º
Max Speed J1108   °/s
J2103   °/s
J3115   °/s
J4360   °/s
J5360   °/s
J6360   °/s
Allowable TorqueJ410.96   N.m
J510.96   N.m
J64.90   N.m
Inertia Moment J40.25   kg.m2
J50.25   kg.m2
J60.05   kg.m2
Robot   Body Weight400kg
Power   Capacity3.9kVA
Cabinet   Size650*750*1150mm
Cabinet   Weight140kg
SourceThree-phase   four-wire
Installing   FormGround   Mounted
Application
    For painting, there is no singularity point, making the teaching   programming much easier.



Robot Overall Dimension and Motion Range Drawing



Robot Base Mounting Dimension Drawing



Robot End Installation Dimension Drawing
