QJAR Series
Home /

QJAR Series

/10kg Payload 1671mm Arm Span Pick And Place Robot

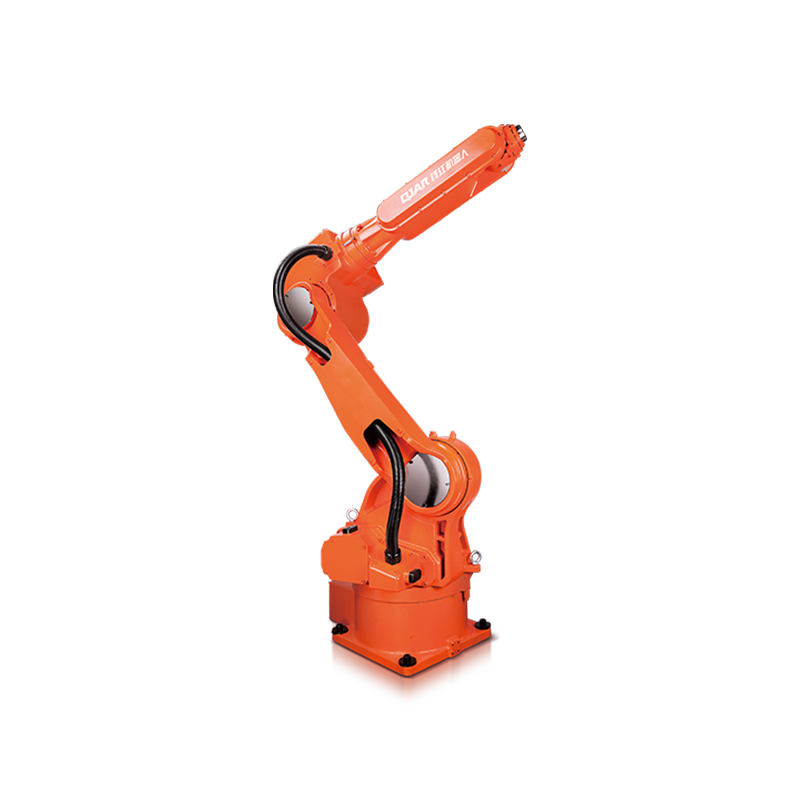

10kg Payload 1671mm Arm Span Pick And Place Robot

QJAR 10kg payload pick and place robot with high repeated positioning accuracy and compact structure....
  • item no.:

    QJR10-1
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction




  • Payload 10 kg, reach distance of 1.67 meters, the design is highly compact, flexible installation with ground or inverse position.
  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other wide range of applications.





Technical Details




Model QJR10-1
Axis Number 6
Payload 10kg
Repeat Positioning ±0.05mm
Max Armspan 1671mm
Motion Range J1 ±172º
J2 ﹢166º,﹣107º
J3 ﹢83º,﹣92º
J4 ±170º
J5 ±125º
J6 ±360º
Max Speed  J1 172º/s
J2 172º/s
J3 183º/s
J4 430º/s
J5 430º/s
J6 584º/s
Allowable Torque J4 24.6N.m
J5 24.6N.m
J6 9.8N.m
Inertia Moment  J4 0.63kg.m²
J5 0.63kg.m²
J6 0.1kg.m²
Robot Body Weight 250kg
Power Capacity 3.3kVA

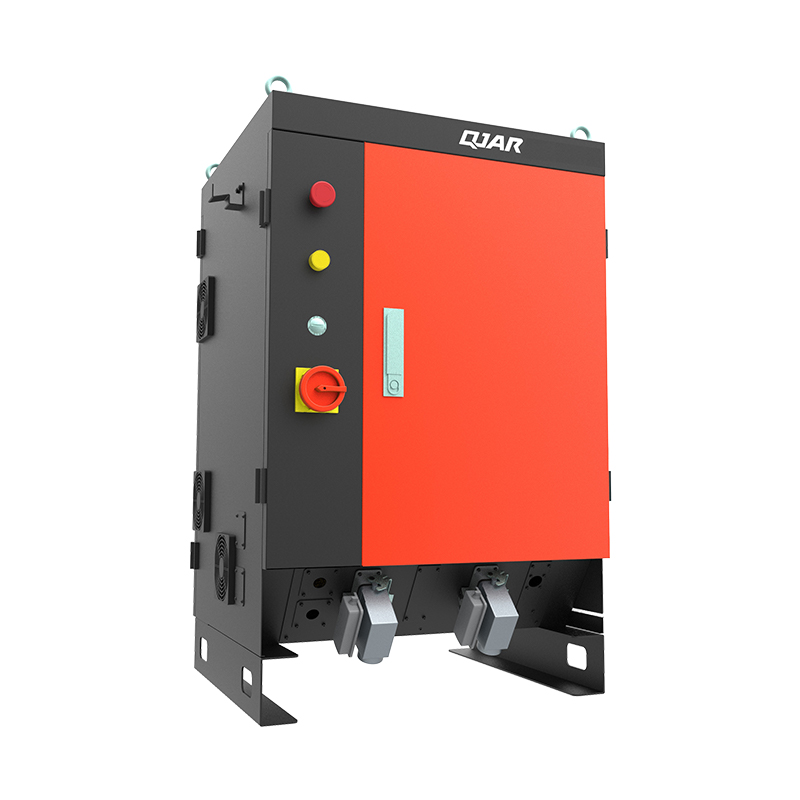

Cabinet Size 580*600*960mm
Cabinet Weight 130kg
Source Three-phase four-wire
Installing Form Ground, Ceiling




Robot Overall Dimension and Motion Range Drawing



QJR10-1 pick and place robot dimension and motion range

Robot Base Mounting Dimension Drawing



QJR10-1 pick and place robot base mounting dimension drawing

Robot End Installation Dimension Drawing



QJR10-1 pick and place robot end installation dimension drawing
