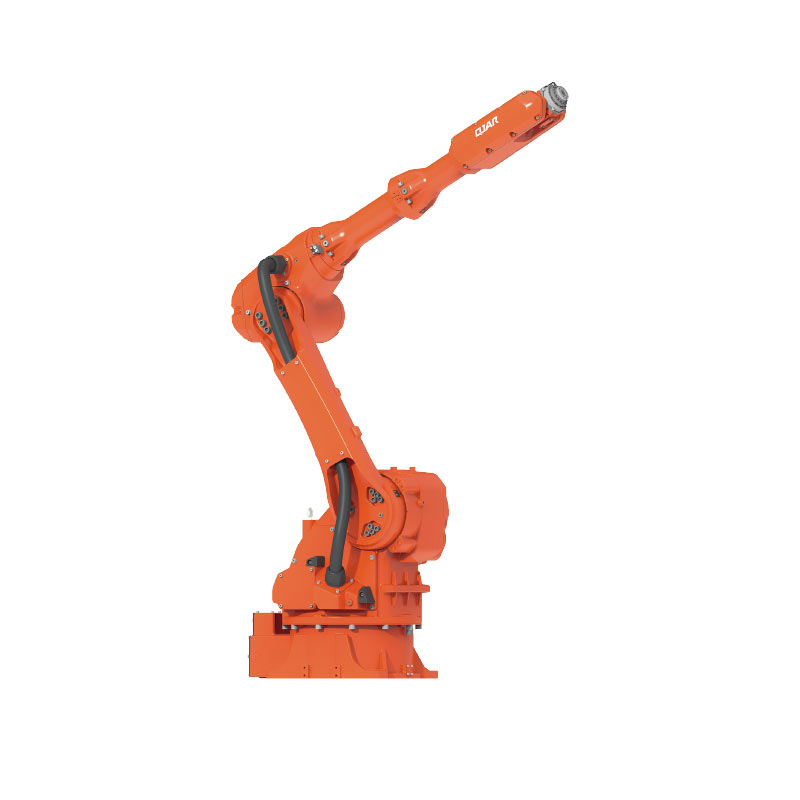

QJAR 10kg Payload 2001mm Reaching Distance Palletizing Robot

QJAR 10kg payload palletizing robot with 2m maximum reaching distance. Large working space and solid robust strucutre....
  • item no.:

    QJR10-2
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction


  • Payload 10kg, reach distance of 2 meters, the design is highly compact, flexible installation with ground or inverse position.
  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, spraying, loading and unloading, handling, sorting, assembly and other wide range of applications.

Technical Details




Model QJR10-2
Axis Number 6
Payload 10kg
Repeat Positioning ±0.05mm
Max Armspan 2001mm
Motion Range J1 ±172º
J2 ﹢158º,﹣110º
J3 ﹢83º,﹣92º
J4 ±170º
J5 ±125º
J6 ±360º
Max Speed  J1 150º/s
J2 150º/s
J3 183º/s
J4 430º/s
J5 430º/s
J6 602º/s
Allowable Torque J4 24.6N.m
J5 24.6N.m
J6 9.8N.m
Inertia Moment  J4 0.63kg.m²
J5 0.63kg.m²
J6 0.1kg.m²
Robot Body Weight 275kg
Power Capacity 4.2kVA
Cabinet Size 580*600*960mm
Cabinet Weight 130kg
Source Three-phase four-wire
Installing Form Ground, Ceiling



Robot Overall Dimension and Motion Range Drawing



QJR10-2 palletizing robot dimension and motion range

Robot Base Mounting Dimension Drawing



QJR10-2 palletizing robot base mounting dimension drawing

Robot End Installation Dimension Drawing



QJR10-2 palletizing robot robot end installation dimension drawing
