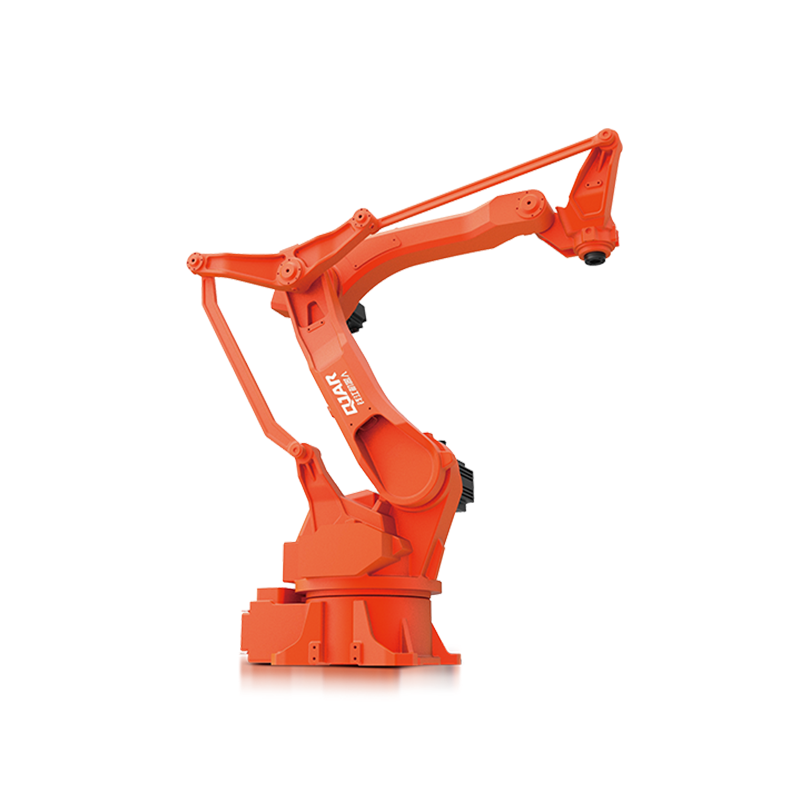

QJAR 15kg Payload 1510mm Reaching Distance Palletizing Robot

QJAR 15kg 4 axis palletizing robot. It's widely applied in punching, palletizing, packaging, etc....
  • item no.:

    QJRB15-1
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction




  • High-speed and stable , all axis operating at low power output, simple equipment composition can be used with special palletizing software.
  • Widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, picking, packaging, handling, feeding and unloading.





Technical Details




Model QJRB15-1
Axis Number 4
Payload 15kg
Repeat Positioning ±0.05mm
Max Armspan 1510mm
Motion Range J1 ±168º
J2 ﹢105º,﹣50º
J3 ﹢105º,﹣25º
J4 ±360º
J5 _
J6 _
Max Speed  J1 195º/s
J2 195º/s
J3 229º/s
J4 544º/s
J5 _
J6 _
Allowable Torque J4 29.4N.m
J5 _
J6 _
Inertia Moment  J4 0.6kg.m²
J5 _
J6 _
Robot Body Weight 160kg
Power Capacity 2.7kVA
Cabinet Size 580*600*960mm
Cabinet Weight 100kg
Source One-phase
Installing Form Ground




Robot Overall Dimension and Motion Range Drawing



QJRB15-1 palletizing robot dimension and motion range

Robot Base Mounting Dimension Drawing



QJRB15-1 palletizing robot base mounting dimension drawing

Robot End Installation Dimension Drawing



QJRB15-1 palletizing robot end installation dimension drawing
