800kg Payload 3159mm Reaching Distance China Handing Palletizing Robotic Arm

QJAR giant 800kg payload 4 axis robot. It’s with big payload and high reliability….

Item No.: QJRB800-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days


Brief Introduction

Special purpose high-load palletizing machine, high-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software

Technical Details

Model QJRB800-1
Axis Number 4
Payload 800kg
Repeat Positioning ±0.5mm
Max Armspan 3159mm
Motion Range J1 ±185º
J2 ﹢95º,﹣48º
J3 ﹢112º,﹣17.5º
J4 ±360º
J5 _
J6 _
Max Speed J1 65º/s
J2 65º/s
J3 65º/s
J4 115º/s
J5 _
J6 _
Allowable Torque J4 _
J5 _
J6 _
Inertia Moment J4 340kg.m²
J5 _
J6 _
Robot Body Weight 2550kg
Power Capacity 23kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 140kg
Source Three-phase five-wire
Installing Form Ground

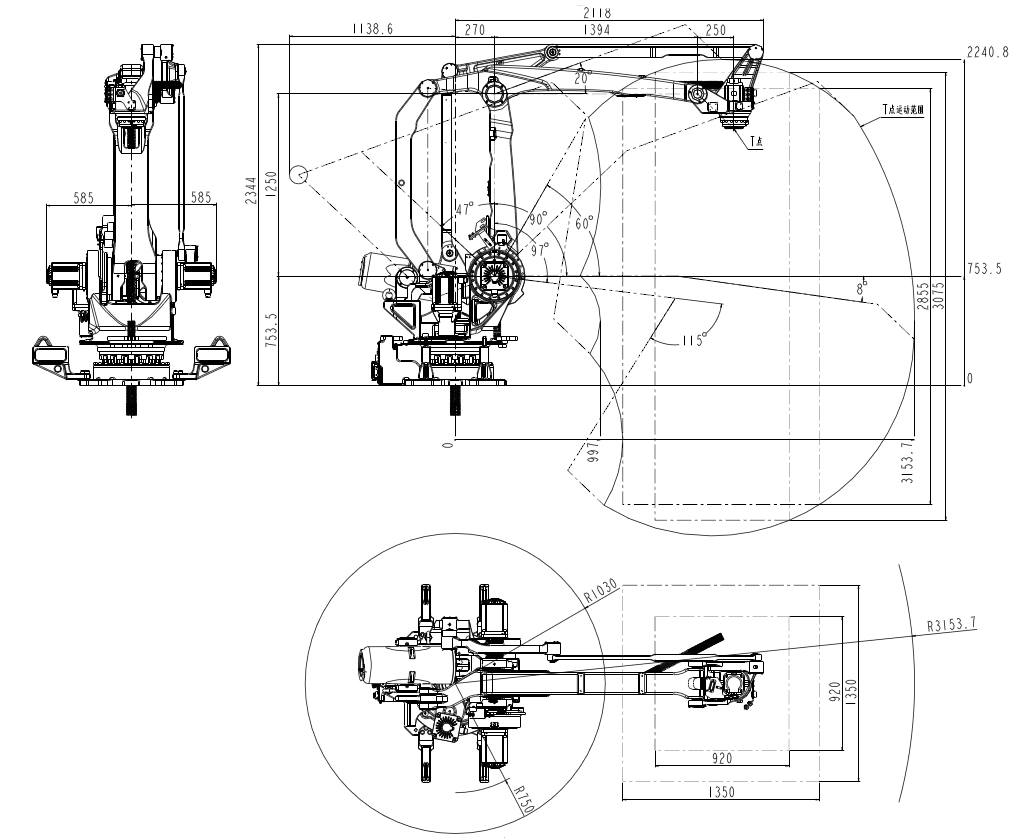

Robot Overall Dimension and Motion Range Drawing

QJRB800-1 robotic arm dimension and motion range

Robot Base Mounting Dimension Drawing

QJRB800-1 robotic arm base mounting dimension drawing

Robot End Installation Dimension Drawing

QJRB800-1 robotic arm robot end installation dimension drawing
