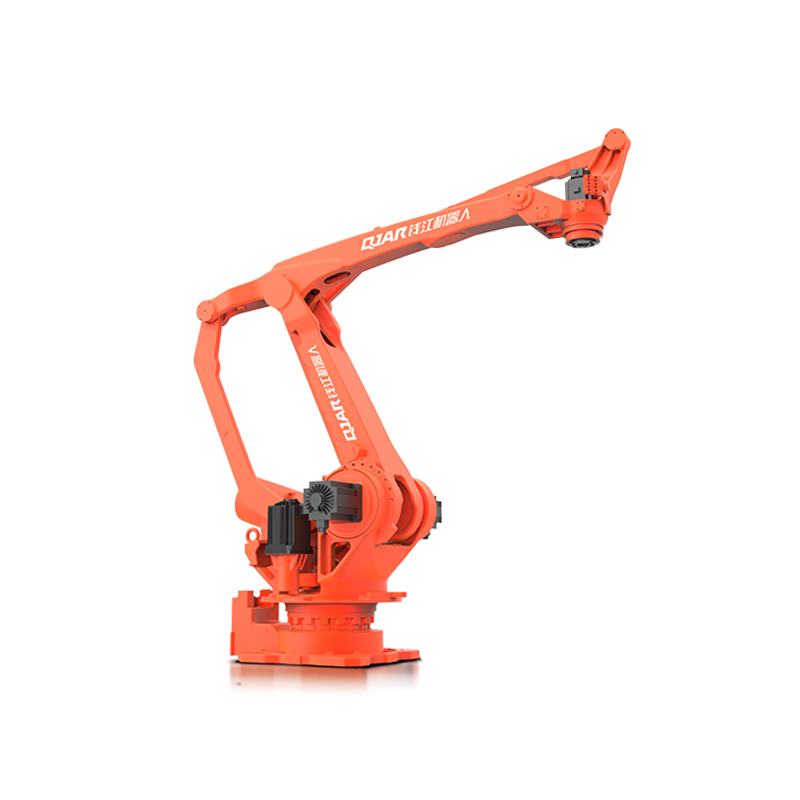

180kg Payload 3153mm Reaching Distance Palletizing Robot

QJAR big-payload 4 axis palletizing robot. It is with high speed and high stability....
  • item no.:

    QJRB180-1
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai port or designated prot
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction




  • High-speed and stable, all axis operating at low power output simple equipment composition can be used with special palletizing software.
  • QJRB180-1 robot is widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.





Technical Details




Model QJRB180-1
Axis Number 4
Payload 180kg
Repeat Positioning ±0.5mm
Max Armspan 3153.7mm
Motion Range J1 ±170º
J2 ﹢95º,﹣47º
J3 ﹢112º,﹣20º
J4 ±360º
J5 _
J6 _
Max Speed  J1 129º/s
J2 132º/s
J3 132º/s
J4 298º/s
J5 _
J6 _
Allowable Torque J4 _
J5 _
J6 _
Inertia Moment  J4 3.25kg.m²
J5 _
J6 _
Robot Body Weight 1400kg
Power Capacity 17.5kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 140kg
Source Three-phase five-wire
Installing Form Ground



Robot Overall Dimension and Motion Range Drawing



QJRB180-1 palletizing robot dimension and motion range


Robot Base Mounting Dimension Drawing



QJRB180-1 palletizing robot base mounting dimension drawing


Robot End Installation Dimension Drawing



QJRB180-1 palletizing robot robot end installation dimension drawing
