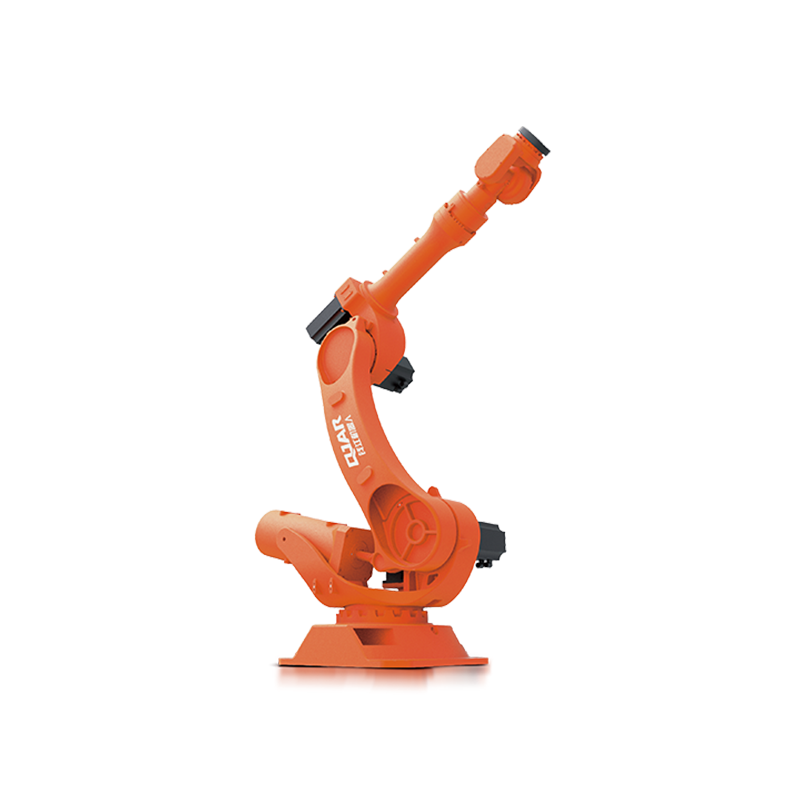

QJAR 210kg Payload 2688mm Arm Span Pick And Place Robot

QJAR heavy-duty and big-payload pick and place robot. It's with large work space and high reliability....
  • item no.:

    QJR210-1
  • Payment:

    T/T
  • product origin:

    China
  • shipping port:

    Shanghai or designated port
  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction




  • Payload 210kg, reach distance of 2.68 meters, the design is highly compact.
  • Large workspace, high running speed, high repeat positioning accuracy, suitable for welding, palletizing, loading and unloading, handling, polishing, assembly and other wide range of applications.





Technical Details




Model QJR210-1
Axis Number 6
Payload 210kg
Repeat Positioning ±0.2mm
Max Armspan 2688mm
Motion Range J1 ±165º
J2 ﹢85º,﹣50º
J3 ﹢75º,﹣160º
J4 ±360º
J5 ±120º
J6 ±360º
Max Speed  J1 100º/s
J2 80º/s
J3 95º/s
J4 130º/s
J5 120º/s
J6 200º/s
Allowable Torque J4 1200N.m
J5 1200N.m
J6 650N.m
Inertia Moment  J4 84kg.m²
J5 84kg.m²
J6 55kg.m²
Robot Body Weight 1257kg
Power Capacity 30.6kVA
Cabinet Size 650*750*1150mm
Cabinet Weight 140kg
Source Three-phase five-wire
Installing Form Ground




Robot Overall Dimension and Motion Range Drawing



QJR210-1 pick and place robot dimension and motion range

Robot Base Mounting Dimension Drawing



QJR210-1 pick and place robot base mounting dimension drawing

Robot End Installation Dimension Drawing



QJR210-1 pick and place robot robot end installation dimension drawing
