QJAR 30kg Payload 1820mm Arm Span Pick And Place Robot
[field:text/] [field:text/]

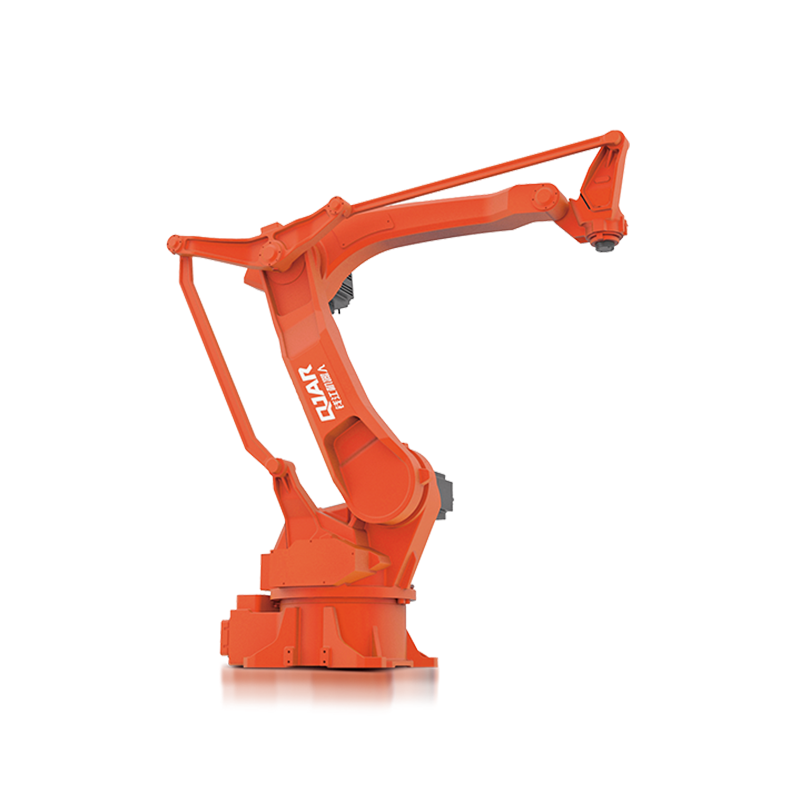

QJAR 30kg Payload 1820mm Arm Span Pick And Place Robot

QJAR high-speed and stable 4 axis pick and place robot. Simple equipment composition can be used with special palletizing software....

  • item no.:

    QJRB30-1

  • Payment:

    T/T

  • product origin:

    China

  • shipping port:

    Shanghai or designated port

  • Lead Time:

    15-30 working days
inquiry now
Product Details

Brief Introduction


1.High-speed and stable, all axis operating at low power output, simple equipment composition can be used with special palletizing software.

2.30kg payload 1820mm pick and place robot widely used in intelligent manufacturing industry such as furniture, food and beverage and 3C, applicable to high-speed and high-precision palletizing, picking, packaging, handling, feeding and unloading.


Pick And Place Robots Video



Technical Details



                Model                 QJRB30-1
                Axis Number                 4
                Payload                 30kg
                Repeat Positioning                 ±0.05mm
                Max Armspan                 1820mm
                Motion Range                 J1                 ±168º
                J2                 ﹢105º,﹣50º
                J3                 ﹢105º,﹣25º
                J4                 ±360º
                J5                 _
                J6                 _
                Max Speed                  J1                 172º/s
                J2                 172º/s
                J3                 212º/s
                J4                 355º/s
                J5                 _
                J6                 _
                Allowable Torque                 J4                 64.68N.m
                J5                 _
                J6                 _
                Inertia Moment                  J4                 1.45kg.m²
                J5                 _
                J6                 _
                Robot Body Weight                 205kg
                Power Capacity                 3.0kVA
                Cabinet Size                 580*600*960mm
                Cabinet Weight                 100kg
                Source                 Three-phase four-wire
                Installing Form                 Ground



Robot Overall Dimension and Motion Range Drawing


QJRB30-1 pick and place robot dimension and motion range

Robot Base Mounting Dimension Drawing


QJRB30-1 pick and place robot base mounting dimension drawing

Robot End Installation Dimension Drawing


QJRB30-1 pick and place robot end installation dimension drawing

Conclusion

In conclusion, our pick and place robots are the ideal choice for manufacturers seeking advanced and reliable solutions for industrial automation. With their speed, accuracy, flexibility, and cost-effectiveness, our pick and place robots offer numerous advantages in optimizing production processes. As the best pick and place robot supplier from China, we are committed to providing our customers with cutting-edge technology, robust build, customization options, competitive pricing, and excellent support. Choose our pick and place robots to elevate your industrial automation to new heights.
