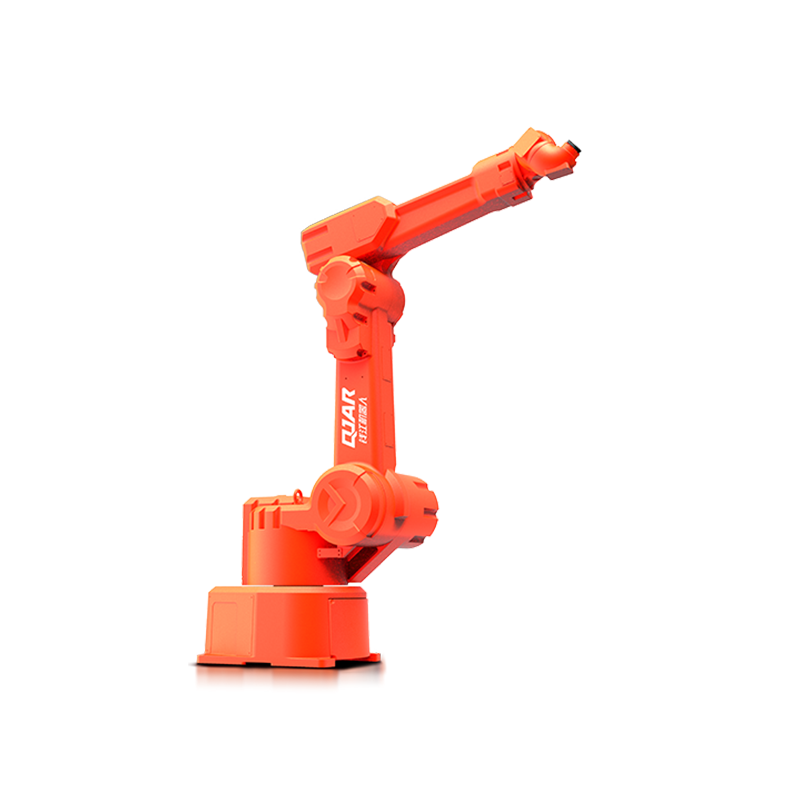

Explosion Proof 10kg Payload 2035mm Arm Span Painting Robot

QJAR 10kg payload explosion-proof painting robot. It’s with bus structure and covenient for expansion and high speed …

Item No.: QJRP10-1
Payment: T/T
Product Origin: China
Shipping Port: Shanghai or designated port
Lead Time: 15-30 working days

PRODUCT DETAILS

Brief Introduction

  • No front singularity wrist construction, optional built-in pipeline, making synchronous tracking spraying teaching job easier.
  • Using bus-structure, convenient for expansion and high speed

Technical Details

Model QJRP10-1(Explosion-proof)
Axis   Number 6
Payload 10kg
Repeat   Positioning ±0.5mm
Max   Armspan 2035mm
Motion Range J1 ±95º
J2 ﹢102º,﹣53º
J3 ﹢87º,﹣80º
J4 ±260º
J5 ±270º
J6 ±260º
Max Speed J1 108   °/s
J2 120   °/s
J3 114   °/s
J4 360   °/s
J5 360   °/s
J6 360   °/s
Allowable Torque J4 30.4   N.m
J5 19.6   N.m
J6 9.8   N.m
Inertia Moment J4 0.97   kg.m2
J5 0.4   kg.m2
J6 0.1   kg.m2
Robot   Body Weight 370kg
Power   Capacity 3.9kVA

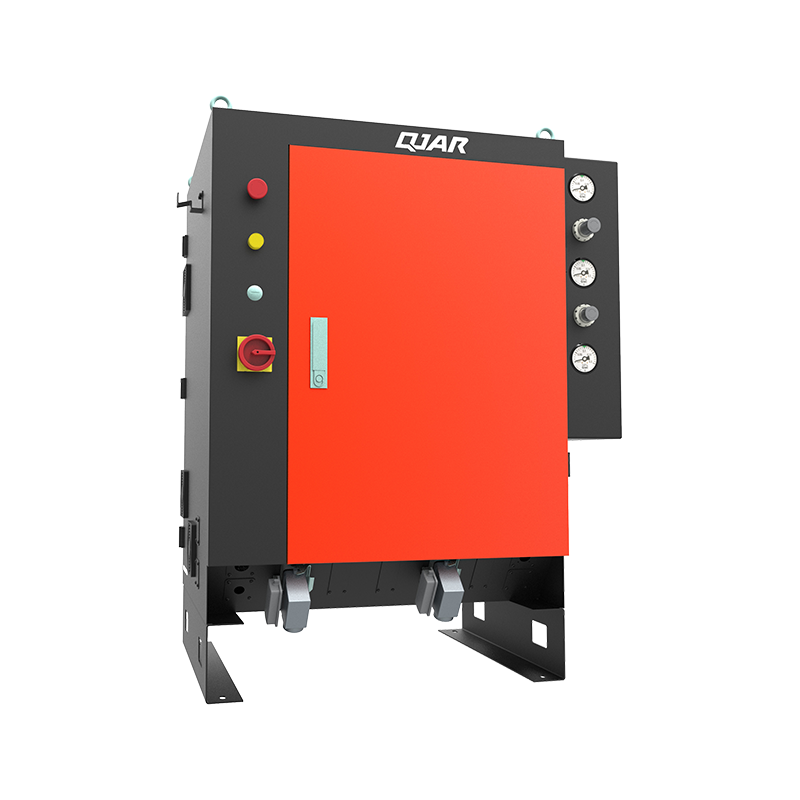

Cabinet   Size 650*750*1150mm
Cabinet   Weight 120kg
Source Three-phase   four-wire
Installing   Form Ground   Mounted
Application For   painting, there is no singularity point, making the teaching programming much   easier.

 Robot Overall Dimension and Motion Range Drawing

2035mm Arm Span Painting Robot Overall Dimension and Motion Range Drawing

Robot Base Mounting Dimension Drawing

2035mm Arm Span Painting Robot Base Mounting Dimension Drawing

Robot End Installation Dimension Drawing

2035mm Arm Span Painting Robot End Installation Dimension Drawing
